Brand: DESTACO

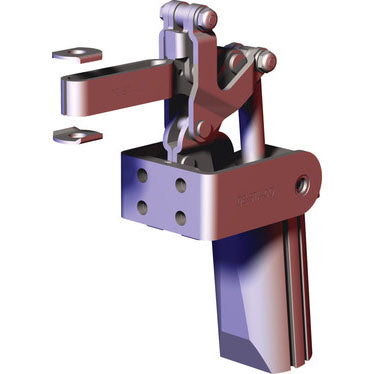

DESTACO 817-SE HOLD-DOWN ACTION CLAMP WITH G-PORTS
SKU: DE-STA-CO-817-SE
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the amazing DESTACO 817-SE HOLD-DOWN ACTION CLAMP WITH G-PORTS! This pneumatic version is a game-changer, giving you the flexibility of both Destaco's manual clamp models 317-U and 317-S. With dual mounting surfaces and a built-in flow control, operation is smoother than ever. It even has a magnetic ring piston for precise position sensing. The clamp arm is designed for maximum flexibility. Plus, the sensor is ready for both round and T-slot styles. No need for external flow controls with the built-in flow restriction. With a maximum holding capacity of 450 lbsf, a clamp arm length of 3.040 inches, a height under the clamp arm of 2.690 inches, and a cylinder bore of 1.26 inches, this clamp is perfect for your applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 817-SE HOLD-DOWN ACTION CLAMP WITH G-PORTS
Product Details
Pneumatic version of manual clamp models 317-U and 317-S. Dual mounting surfaces for max flexibility. Built-in flow control for smooth operation, magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Dual mounting surfaces for maximum flexibility
- Sensor ready for round or T-slot style sensors
- Built-in flow restriction eliminates the need for external flow controls
- Replacement Clamp Assembly: 817-S-LC
| Maximum Holding Capacity (lbsf) | 450 |
| Clamp Arm Length (in) | 3.040 |
| Height Under Clamp Arm (in) | 2.690 |
| Cylinder Bore (in) | 1.26 |
| Clamp Arm Style | u-bar |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Duty Cycle | Fair/Medium |
| Operating Temperature | -10° to 90°C (-14° to 194° F) |
| Product Type | Pneumatic Toggle Clamp |
| Air Port size | G-1/8 |
| Exerting Force (lbf) | 360 |
| Air Consumption (ft³) | 0.015 |
| Replacement Seal Kit | 802450-32-1-0 |
| Weight (lb) | 2.31 |
| Product Series Description | Toggle Clamp |
| Product Function | Clamping |
| Product Family | Light-Duty Pneumatic Clamping |
| Product Group | Standard pneumatic clamps |
