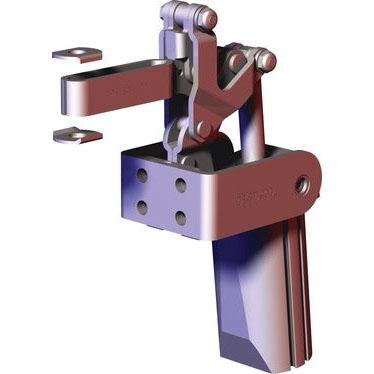

DESTACO 817-S HOLD-DOWN ACTION CLAMP

Brand: DESTACO

DESTACO 817-S HOLD-DOWN ACTION CLAMP

SKU: DE-STA-CO-817-S
MPN: 817-S

  • $191.70
    Unit price per
  • Save $24.08
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the power and versatility of DESTACO's 817-S HOLD-DOWN ACTION CLAMP - the pneumatic version of Destaco's popular manual clamp models 317-U and 317-S. With dual mounting surfaces, this clamp offers maximum flexibility and convenience for any project. Don't miss out on the smooth operation and precise positioning enabled by the built-in flow control and magnetic ring piston. Plus, the clamp is sensor ready and can accommodate both T-slot and round sensors, making it even more versatile. No need for external flow controls - this clamp has it all covered. Enjoy its impressive maximum holding capacity of 450 lbsf, 3.040 inch clamp arm length, 2.690 inch height under the clamp arm, and 1.26 inch cylinder bore. Its u-bar clamp arm style is perfect for a variety of applications.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 817-S HOLD-DOWN ACTION CLAMP

Pneumatic version of manual clamp models 317-U and 317-S. Dual mounting surfaces for max flexibility. Built-in flow control for smooth operation, magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.

  • Dual mounting surfaces for maximum flexibility
  • Sensor ready for round or T-slot style sensors
  • Built-in flow restriction eliminates the need for external flow controls
  • Replacement Clamp Assembly: 817-S-LC
Maximum Holding Capacity (lbsf) 450
Clamp Arm Length (in) 3.040
Height Under Clamp Arm (in) 2.690
Cylinder Bore (in) 1.26
Clamp Arm Style u-bar
Application - Welding Fair/Medium
Application - Assembly Excellent/High
Duty Cycle Fair/Medium
Operating Temperature -10° to 90°C (-14° to 194° F)
Product Type Pneumatic Toggle Clamp
AirPort size 1/8 NPT
Exerting Force (lbf) 360
Air Consumption (ft³) 0.015
Replacement Seal Kit 802450-32-1-0
Weight (lb) 2.31
Product Series Description Toggle Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group standard pneumatic clamps
