Brand: JW Winco

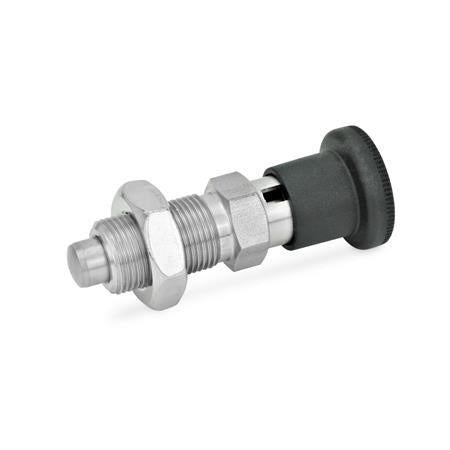

JW WINCO GN817-5-5-M10X1-BK-NI INDEXING PLUNGER - 817-5-5-M10X1-BK-NI
SKU: JW-817-5-5-M10X1-BK-NI
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN817-5-5-M10X1-BK-NI INDEXING PLUNGER - 817-5-5-M10X1-BK-NIGN 817 indexing plungers are used in applications where the plunger must not protrude continually. This indexing plunger has the unique feature of the pull knob partially enclosing the top of the plunger body, allowing less debris to enter into the mechanism.
Body: Stainless Steel
Handle: Plastic Knob
Plunger Pin: Stainless Steel
Lock Nut: Stainless Steel
Locking: n/a
Thread Type: Metric
Thread: M10
GN817 Standard Sheet
Stainless Steel Material Charcteristics
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN817-5-5-M10X1-BK-NI INDEXING PLUNGER - 817-5-5-M10X1-BK-NI
GN 817 indexing plungers are used in applications where the plunger must not protrude continually. This indexing plunger has the unique feature of the pull knob partially enclosing the top of the plunger body, allowing less debris to enter into the mechanism.
Body: Stainless Steel
Handle: Plastic Knob
Plunger Pin: Stainless Steel
Lock Nut: Stainless Steel
Locking: n/a
Thread Type: Metric
Thread: M10
Plunger Dia.: 5 mm
Plunger Length: 5 mm
Knob Dia.: 19 mm
Length: 40 mm
Rod Thread: -
Rod Length: -
Initial Load: 5 N
End Load: 15 N
