Brand: JW Winco

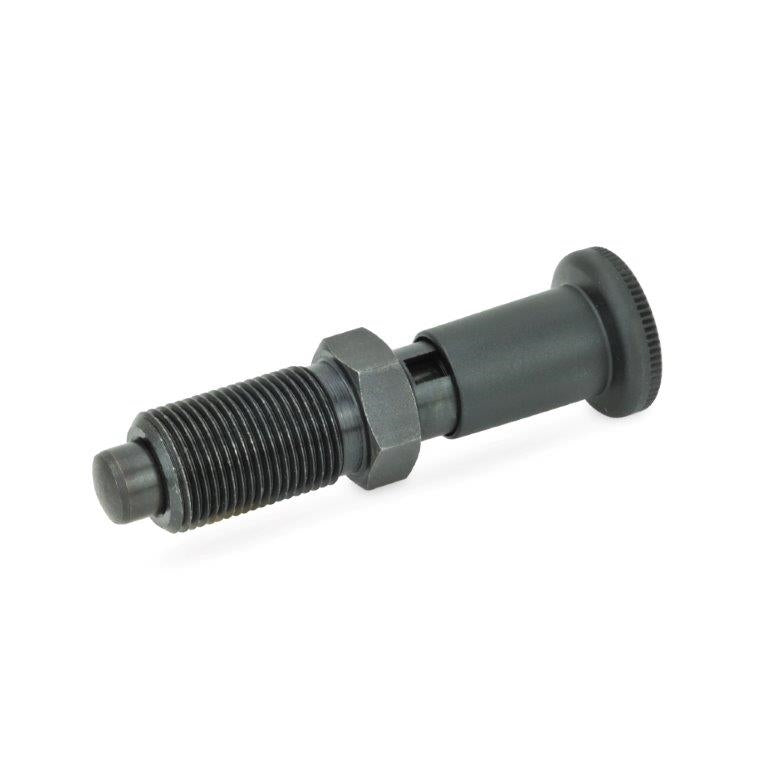

JW WINCO GN817.2-5-8-M10X1-C INDEXING PLUNGER - 817.2-5-8-M10X1-C
SKU: JW-817.2-5-8-M10X1-C
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN817.2-5-8-M10X1-C INDEXING PLUNGER - 817.2-5-8-M10X1-CGN 817.2 indexing plungers are identical to GN 817 but with a longer knob. A notch keeps the plunger in this position.
Body: Steel
Knob: Plastic
Plunger Pin: Steel
Lock Nut: none
Locking: Lock-Out
Thread Type: Metric
Thread: M10
GN817.2 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN817.2-5-8-M10X1-C INDEXING PLUNGER - 817.2-5-8-M10X1-C
GN 817.2 indexing plungers are identical to GN 817 but with a longer knob. A notch keeps the plunger in this position.
Body: Steel
Knob: Plastic
Plunger Pin: Steel
Lock Nut: none
Locking: Lock-Out
Thread Type: Metric
Thread: M10
Plunger Dia.: 5 mm
Plunger Length: 8 mm
Knob Dia.: 19 mm
Knob Length: 24 mm
Overall Length: 48 mm
Initial Load: 5 N
End Load: 18 N
