Brand: JW Winco

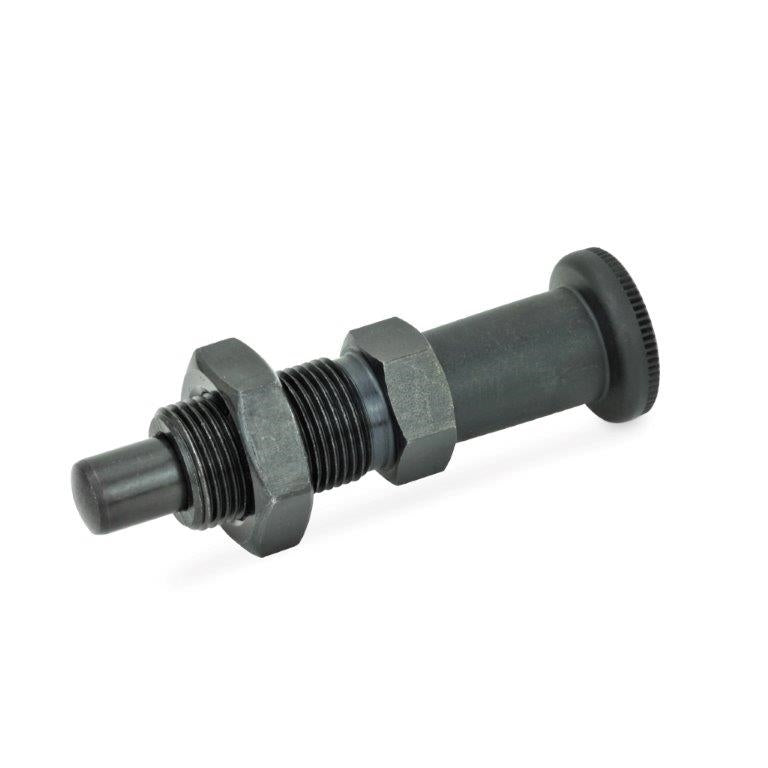

JW WINCO GN817.2-4-4-M8X1-BK INDEXING PLUNGER - 817.2-4-4-M8X1-BK
SKU: JW-817.2-4-4-M8X1-BK
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN817.2-4-4-M8X1-BK INDEXING PLUNGER - 817.2-4-4-M8X1-BKGN 817.2 indexing plungers are identical to GN 817 but with a longer knob. A notch keeps the plunger in this position.
Body: Steel
Knob: Plastic
Plunger Pin: Steel
Lock Nut: Steel
Locking: n/a
Thread Type: Metric
Thread: M8
GN817.2 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN817.2-4-4-M8X1-BK INDEXING PLUNGER - 817.2-4-4-M8X1-BK
GN 817.2 indexing plungers are identical to GN 817 but with a longer knob. A notch keeps the plunger in this position.
Body: Steel
Knob: Plastic
Plunger Pin: Steel
Lock Nut: Steel
Locking: n/a
Thread Type: Metric
Thread: M8
Plunger Dia.: 4 mm
Plunger Length: 4 mm
Knob Dia.: 16 mm
Knob Length: 21 mm
Overall Length: 42 mm
Initial Load: 4.5 N
End Load: 12 N
