Brand: JW Winco

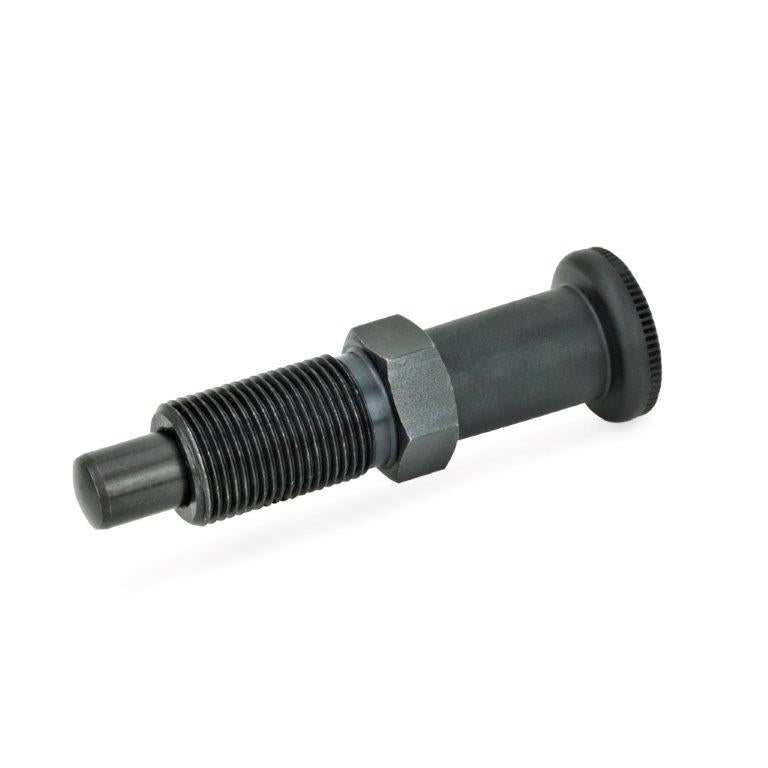

JW WINCO GN817.2-12-15-M20X1.5-B INDEXING PLUNGER - 817.2-12-15-M20X1.5-B
SKU: JW-817.2-12-15-M20X1.5-B
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN817.2-12-15-M20X1.5-B INDEXING PLUNGER - 817.2-12-15-M20X1.5-BGN 817.2 indexing plungers are identical to GN 817 but with a longer knob. A notch keeps the plunger in this position.
Body: Steel
Knob: Plastic
Plunger Pin: Steel
Lock Nut: none
Locking: n/a
Thread Type: Metric
Thread: M20
GN817.2 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN817.2-12-15-M20X1.5-B INDEXING PLUNGER - 817.2-12-15-M20X1.5-B
GN 817.2 indexing plungers are identical to GN 817 but with a longer knob. A notch keeps the plunger in this position.
Body: Steel
Knob: Plastic
Plunger Pin: Steel
Lock Nut: none
Locking: n/a
Thread Type: Metric
Thread: M20
Plunger Dia.: 12 mm
Plunger Length: 15mm
Knob Dia.: 28 mm
Knob Length: 36 mm
Overall Length: 79 mm
Initial Load: 11.5 N
End Load: 40 N
