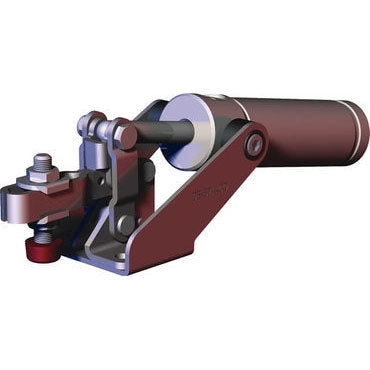

DESTACO 812-U - PNEUMATIC HOLD DOWN CLAMP

Brand: DESTACO

DESTACO 812-U - PNEUMATIC HOLD DOWN CLAMP

SKU: DE-STA-CO-812-U
MPN: 812-U

  • $130.21
    Unit price per
  • Save $18.39
Shipping calculated at checkout.

In-Stock: 5

Only 5 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Elevate your clamping game with DESTACO 812-U - PNEUMATIC HOLD DOWN TOGGLE CLAMP! This pneumatic version of Destaco's manual toggle clamp model 201 offers built-in flow restrictors for maximum control. The smallest in our pneumatic hold down series, this clamp is powered by a double-acting pneumatic system. With a maximum holding capacity of 100 lbsf, 1.020 inch clamp arm length, 0.680 inch height under clamp arm, and 0.75 inch cylinder bore, this u-bar style clamp has got you covered.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 812-U - PNEUMATIC HOLD DOWN CLAMP

Pneumatic version of our manual clamp model 201. Has built-in flow restrictors

  • Smallest of the pneumatic hold down series clamps
  • The double-acting pneumatic system required to operate
  • Pneumatic version of 201-U manual toggle clamp
  • Optional Sensors:810156 or 810156. These use 810156-1 band clamp (included with sensors) to mount the sensor to the cylinder. Two (2) sensors required to detect both open and closed positions
  • Replacement Clamp Assembly: 812-U-LC
Maximum Holding Capacity (lbsf) 100
Clamp Arm Length (in) 1.020
Height Under Clamp Arm (in) 0.680
Cylinder Bore (in) 0.75
Clamp Arm Style u-bar
Spindle Included? Yes
Application - Welding Poor/Low
Application - Assembly Excellent/High
Duty Cycle Poor/Low
Operating Temperature -23° to 74°C (-10° to 165° F)
Product Type Pneumatic Toggle Clamp
AirPort size M5
Exerting Force (lbf) 136
Air Consumption (ft³) 0.003
Replacement Seal Kit 810450-40-1-00
Weight (lb) 0.46
Product Series Description Toggle Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group standard pneumatic clamps
