Brand: JW Winco

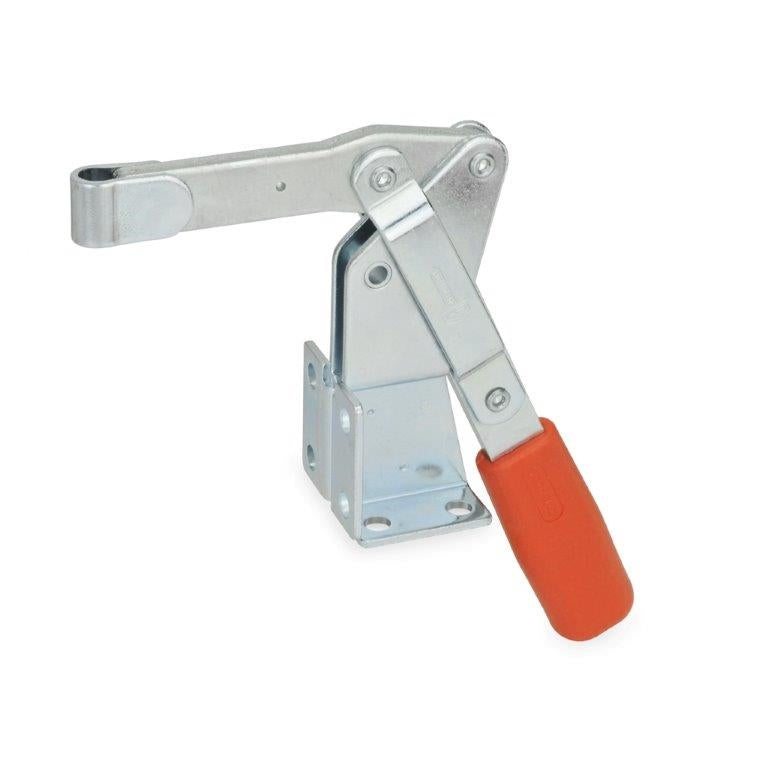

JW WINCO GN812-300-EV VERTICAL TOGGLE CLAMP
SKU: JW-812-300-EV
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN812-300-EV VERTICAL TOGGLE CLAMPGN 812 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. They can be mounted in two planes via the dual flanged mounting baseand require less space for the clamping action because the clamping arm and the operating lever move in opposite directions.
Steel Clamp with Zinc plated Finish
GN 812 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN812-300-EV VERTICAL TOGGLE CLAMP
GN 812 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. They can be mounted in two planes via the dual flanged mounting baseand require less space for the clamping action because the clamping arm and the operating lever move in opposite directions.
Clamp: Steel
Finish: Zinc plated
Hand Grip: Plastic
Spindle: Steel
Type: Solid clamping arm
Size: 300
Holding Capacity: 1900 N
Thread Dia.: M10
U-Bar Arm Length: -
Solid Bar Arm Length: 3.74"
Overall Length: 7.64"
Overall Height: 7.80"
Plate Length: 1.89"
Mounting Dist: 1.18"
Plate Width: 2.01"
Mounting Dist: 1.18"
