Brand: JW Winco

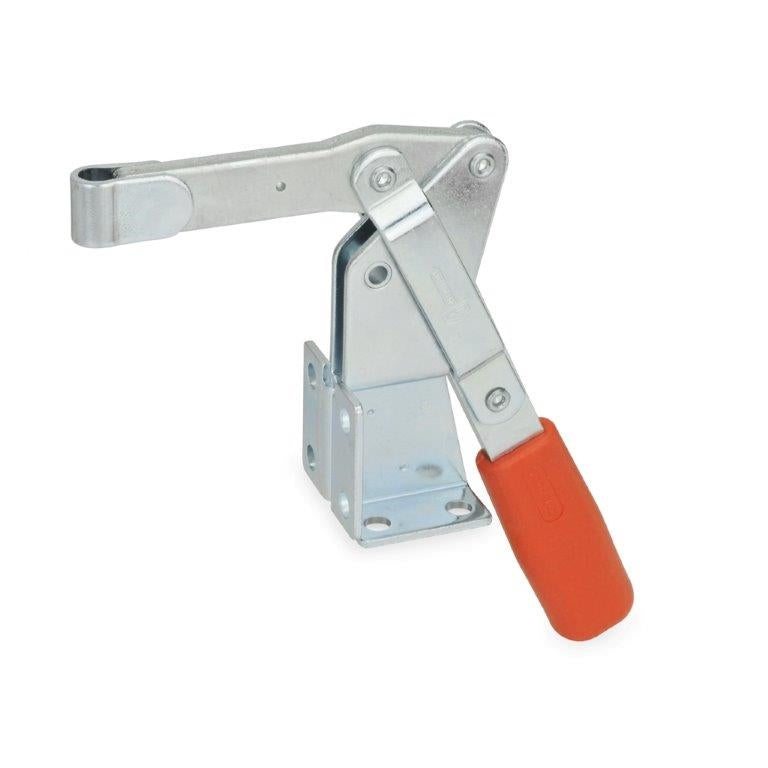

JW WINCO GN812-200-EV VERTICAL TOGGLE CLAMP

SKU: JW-812-200-EV
MPN: 812-200-EV

  • $29.67
    Unit price per
  • Save $0.53
Shipping calculated at checkout.

Stock: 0

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**


Short Description

JW WINCO GN812-200-EV VERTICAL TOGGLE CLAMP
GN 812 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. They can be mounted in two planes via the dual flanged mounting baseand require less space for the clamping action because the clamping arm and the operating lever move in opposite directions.
Steel Clamp with Zinc plated Finish
GN 812 Standard Sheet


Full Description

JW WINCO GN812-200-EV VERTICAL TOGGLE CLAMP

GN 812 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. They can be mounted in two planes via the dual flanged mounting baseand require less space for the clamping action because the clamping arm and the operating lever move in opposite directions.

Clamp: Steel

Finish: Zinc plated

Hand Grip: Plastic

Spindle: Steel

Type: Solid clamping arm

Size: 200

Holding Capacity: 1200 N

Thread Dia.: M8

U-Bar Arm Length: -

Solid Bar Arm Length: 2.99"

Overall Length: 6.22"

Overall Height: 6.06"

Plate Length: 1.38"

Mounting Dist: 1.02"

Plate Width: 1.38"

Mounting Dist: 0.63"

GN 812 Standard Sheet
