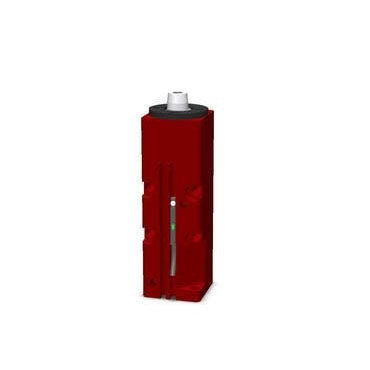

DESTACO 8116-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS
SKU: DE-STA-CO-8116-LA
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
These DESTACO 8116-LA - BLOCK STYLE pneumatic swing clamps have a proven and reliable design that can be used in various applications, such as welding and assembly. The block-style bodies offer maximum flexibility as they can be mounted from the top or side. Each model includes a magnetic ring piston for precise positioning, and can be easily mounted on either side of the clamping arm. With a left-hand swing and a stroke of 21.5mm (0.850in), the cylinder has a bore of 19.1mm (0.75in) and provides a clamping force of 80N (18lbf) when operating at 5Bar (72Psi).
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 8116-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS
Product Details
These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The block-style bodies can be mounted from the top or side for maximum flexibility. All models feature a magnetic ring piston for position sens
- Sensor ready
- Clamping arm not included.
- Left-hand swing
Stroke (mm) | 21.5 |
Stroke (in) | 0.850 |
Cylinder Bore (mm) | 19.1 |
Cylinder Bore (in) | 0.75 |
Clamping Force @ 5Bar[72Psi] (N) | 80 |
Clamping Force @ 5Bar[72Psi] (lbf.) | 18 |
Mount | Block style - side or top mount |
Replacement Seal Kit | 801560 |
Swing Direction | LH |
Air Port size | 10-32 |
Air Consumption (per double stroke at 5 bar) (dm³) | 0.060 |
Air Consumption (per double stroke at 7 psi) (in³) | 0.002 |
Stroke during rotation (mm) | 11.8 |
Stroke during rotation (in) | 0.47 |
Vertical clamp stroke (mm) | 9.7 |
Vertical clamp stroke (in) | 0.38 |
Sensor Ready | Yes |
Weight (kg) | 0.31 |
Weight (lb) | 0.68 |
Product Series Description | Swing Clamp |
