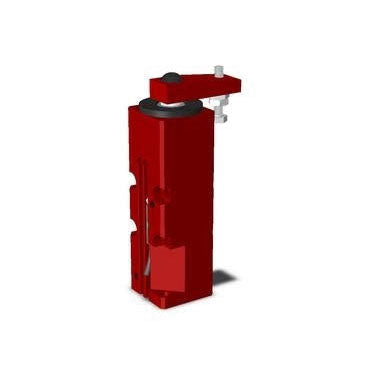

DESTACO 8116 - BLOCK STYLE PNEUMATIC SWING CLAMPS

Brand: DESTACO

DESTACO 8116 - BLOCK STYLE PNEUMATIC SWING CLAMPS

SKU: DE-STA-CO-8116
MPN: 8116

  • $357.38
    Unit price per
  • Save $27.63
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Elevate your welding and assembly processes with the proven and reliable DESTACO 8116 - BLOCK STYLE PNEUMATIC SWING CLAMPS! Featuring a flexible and versatile design that can be mounted from the top or side, these clamps are equipped with a magnetic ring piston for precise positioning. With a strong clamping force of 80N (18lbf) at 5bar (72psi), these clamps are perfect for a wide range of applications. Available with or without a clamping arm, specify left-hand swing for even more convenience. Upgrade your work with the powerful and efficient DESTACO 8116 - BLOCK STYLE PNEUMATIC SWING CLAMPS today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 8116 - BLOCK STYLE PNEUMATIC SWING CLAMPS

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The block-style bodies can be mounted from the top or side for maximum flexibility. All models feature a magnetic ring piston for position sens

  • Sensor ready
  • Clamping arm and spindle included. Available without clamping arm, specify -LA
  • Left-hand swing
Stroke (mm) 21.5
Stroke (in) 0.850
Cylinder Bore (mm) 19.1
Cylinder Bore (in) 0.75
Clamping Force @ 5Bar[72Psi] (N) 80
Clamping Force @ 5Bar[72Psi] (lbf.) 18
Mount Block style - side or top mount
Replacement Seal Kit 801560
Swing Direction LH
Air Port size 10-32
Air Consumption (per double stroke at 5 bar) (dm³) 0.060
Air Consumption (per double stroke at 7 psi) (in³) 0.002
Stroke during rotation (mm) 11.8
Stroke during rotation (in) 0.47
Vertical clamp stroke (mm) 9.7
Vertical clamp stroke (in) 0.38
Sensor Ready Yes
Weight (kg) 0.31
Weight (lb) 0.68
Product Series Description Swing Clamp
