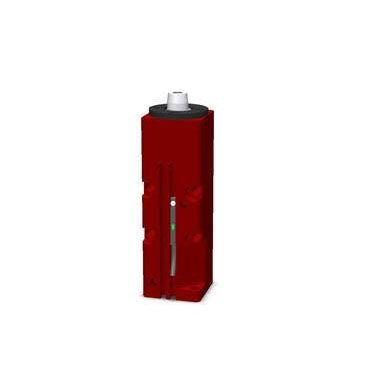

DESTACO 8115-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS

Brand: DESTACO

DESTACO 8115-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS

SKU: DE-STA-CO-8115-LA
MPN: 8115-LA

  • $331.98
    Unit price per
  • Save $25.68
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Introducing the revolutionary DESTACO 8115-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS. These powerful, reliable clamps have been trusted in countless applications, from welding to assembly. With versatile block-style bodies that can be mounted from the top or side, you'll have maximum flexibility to tackle any project. Equipped with a magnetic ring piston for precise positioning, these clamps are sensor-ready and ready to take on any challenge. These right-hand swing clamps have a stroke of 21.5 mm (0.850 in), and a cylinder bore of 19.1 mm (0.75 in). With a clamping force of 80 N (18 lbf) at 5Bar (72Psi), these clamps have the power to hold everything in place. Choose between a side or top mount for the perfect fit. Get yours now and experience the unmatched performance of DESTACO! Please note: Clamping arm sold separately.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 8115-LA - BLOCK STYLE PNEUMATIC SWING CLAMPS

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The block-style bodies can be mounted from the top or side for maximum flexibility. All models feature a magnetic ring piston for position sens

  • Sensor ready
  • Clamping arm not included.
  • Right-hand swing
Stroke (mm) 21.5
Stroke (in) 0.850
Cylinder Bore (mm) 19.1
Cylinder Bore (in) 0.75
Clamping Force @ 5Bar[72Psi] (N) 80
Clamping Force @ 5Bar[72Psi] (lbf.) 18
Mount Block style - side or top mount
Replacement Seal Kit 801560
Swing Direction RH
AirPort size 10-32
Air Consumption (per double stroke at 5 bar) (dm³) 0.060
Air Consumption (per double stroke at 7 psi) (in³) 0.002
Stroke during rotation (mm) 11.8
Stroke during rotation (in) 0.47
Vertical clamp stroke (mm) 9.7
Vertical clamp stroke (in) 0.38
Sensor Ready Yes
Weight (kg) 0.31
Weight (lb) 0.68
Product Series Description Swing Clamp
