Brand: DESTACO

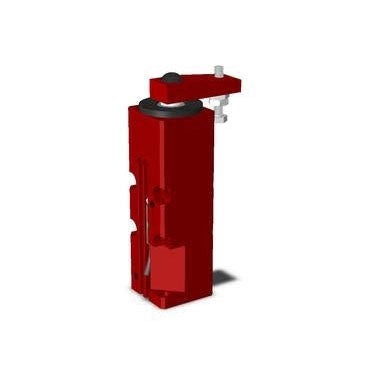

DESTACO 8115 - BLOCK STYLE PNEUMATIC SWING CLAMPS

SKU: DE-STA-CO-8115
MPN: 8115

$357.38
Unit price per
Save $27.63

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the proven reliability and versatility of DESTACO 8115 - BLOCK STYLE PNEUMATIC SWING CLAMPS. Whether for welding or assembly, these clamps are essential for a wide range of applications. The magnetic ring piston provides precise position sensing and can be easily mounted from either the top or side for maximum flexibility. With a stroke of 21.5mm (0.850in) and a cylinder bore of 19.1mm (0.75in), these clamps deliver a powerful clamping force of 80N (18lbf) at 5Bar (72Psi). Trust DESTACO for reliable and efficient clamping solutions that will exceed your expectations!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 8115 - BLOCK STYLE PNEUMATIC SWING CLAMPS

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The block-style bodies can be mounted from the top or side for maximum flexibility. All models feature a magnetic ring piston for position sens

Sensor ready
Clamping arm and spindle included. Available without clamping arm, specify -LA
Right-hand swing

Stroke (mm)	21.5
Stroke (in)	0.850
Cylinder Bore (mm)	19.1
Cylinder Bore (in)	0.75
Clamping Force @ 5Bar[72Psi] (N)	80
Clamping Force @ 5Bar[72Psi] (lbf.)	18
Mount	Block style - side or top mount
Replacement Seal Kit	801560
Swing Direction	RH
AirPort size	10-32
Air Consumption (per double stroke at 5 bar) (dm³)	0.060
Air Consumption (per double stroke at 7 psi) (in³)	0.002
Stroke during rotation (mm)	11.8
Stroke during rotation (in)	0.47
Vertical clamp stroke (mm)	9.7
Vertical clamp stroke (in)	0.38
Sensor Ready	Yes
Weight (kg)	0.31
Weight (lb)	0.68
Product Series Description	Swing Clamp
