Brand: DESTACO

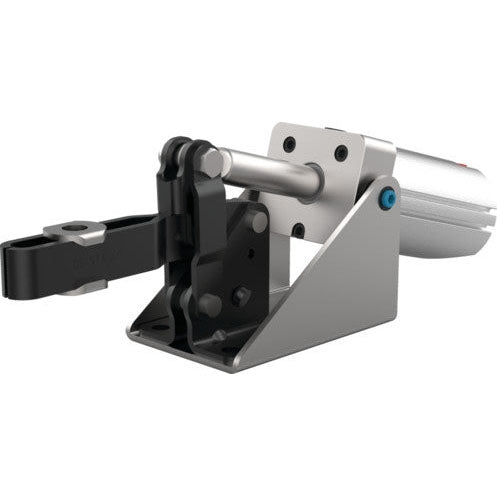

DESTACO 810-U HOLD-DOWN ACTION CLAMP
SKU: DE-STA-CO-810-U
MPN:
In-Stock: 10
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the power and versatility of the DESTACO 810-U HOLD-DOWN ACTION PNEUMATIC CLAMP. Similar to Destaco's popular manual clamp models 210-U and 210-S, this version includes a built-in flow control mechanism for smoother operation and a magnetic ring piston for precise position sensing. Thanks to its built-in flow restriction, you won't need any external flow controls. With a maximum holding capacity of 600 lbsf and a 3.570-inch clamp arm length, this clamp is built to handle any task. The 1.790-inch height under the clamp arm and the 1.57-inch cylinder bore further enhance its efficiency. Trust the u-bar style clamp arm for secure toggle clamping operations.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 810-U HOLD-DOWN ACTION CLAMP
Pneumatic version of our manual clamp models 210-U and 210-S. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Sensor ready for round or T-slot sensors.
- Built-in flow restriction eliminates the need for external flow controls
- Pneumatic version of 210 manual toggle clamp
- Replacement Clamp Assembly: 810-U-LC
Maximum Holding Capacity (lbsf) | 600 |
Clamp Arm Length (in) | 3.570 |
Height Under Clamp Arm (in) | 1.790 |
Cylinder Bore (in) | 1.57 |
Clamp Arm Style | u-bar |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Duty Cycle | Fair/Medium |
Operating Temperature | -10° to 90°C (-14° to 194° F) |
Product Type | Pneumatic Toggle Clamp |
AirPort size | 1/8 NPT |
Exerting Force (lbf) | 856 |
Air Consumption (ft³) | 0.029 |
Replacement Seal Kit | 810450-40-1-00 |
Weight (lb) | 4.07 |
Product Series Description | Toggle Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | standard pneumatic clamps |
