Brand: JW Winco

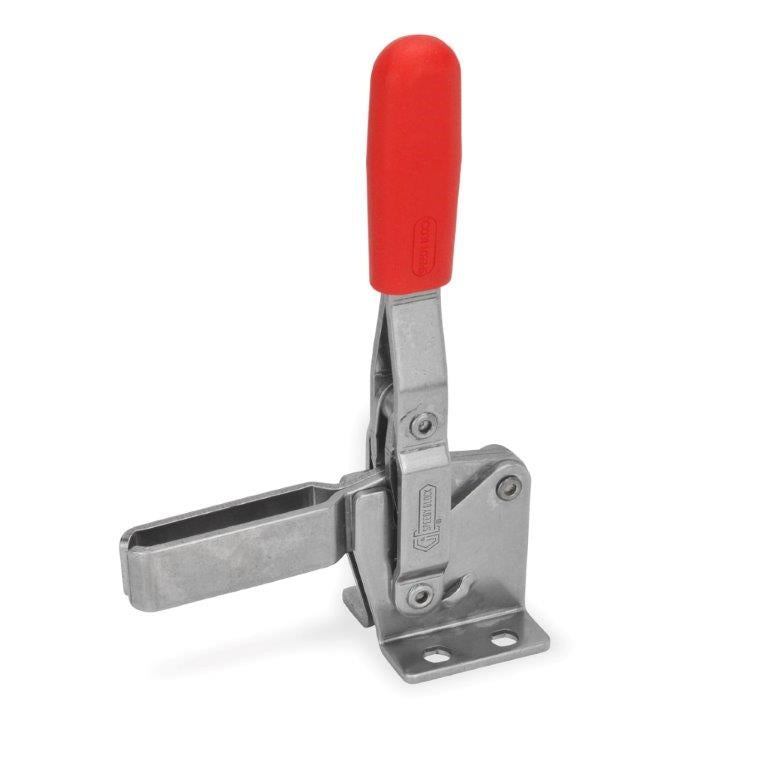

JW WINCO GN810-130-A-NI VERTICAL TOGGLE CLAMP
SKU: JW-810-130-A-NI
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN810-130-A-NI VERTICAL TOGGLE CLAMPGN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.
Stainless Steel Clamp with Matte Finish
GN 810 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN810-130-A-NI VERTICAL TOGGLE CLAMP
GN 810 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.
Clamp: Stainless Steel
Finish: Matte
Hand Grip: Plastic
Spindle: Stainless Steel
Type: U-bar, two washers
Size: 130
Holding Capacity: 1050 N
Thread Dia.: M6
U-Bar Arm Length: 1.65"
Solid Bar Arm Length: -
Overall Length: 3.35"
Overall Height: 5.59"
Plate Length: 1.38"
Mounting Dist (Min/Max): 0.49" / 0.75"
Plate Width: 1.65"
Mounting Dist (Min/Max): 1.06" / 1.14"
