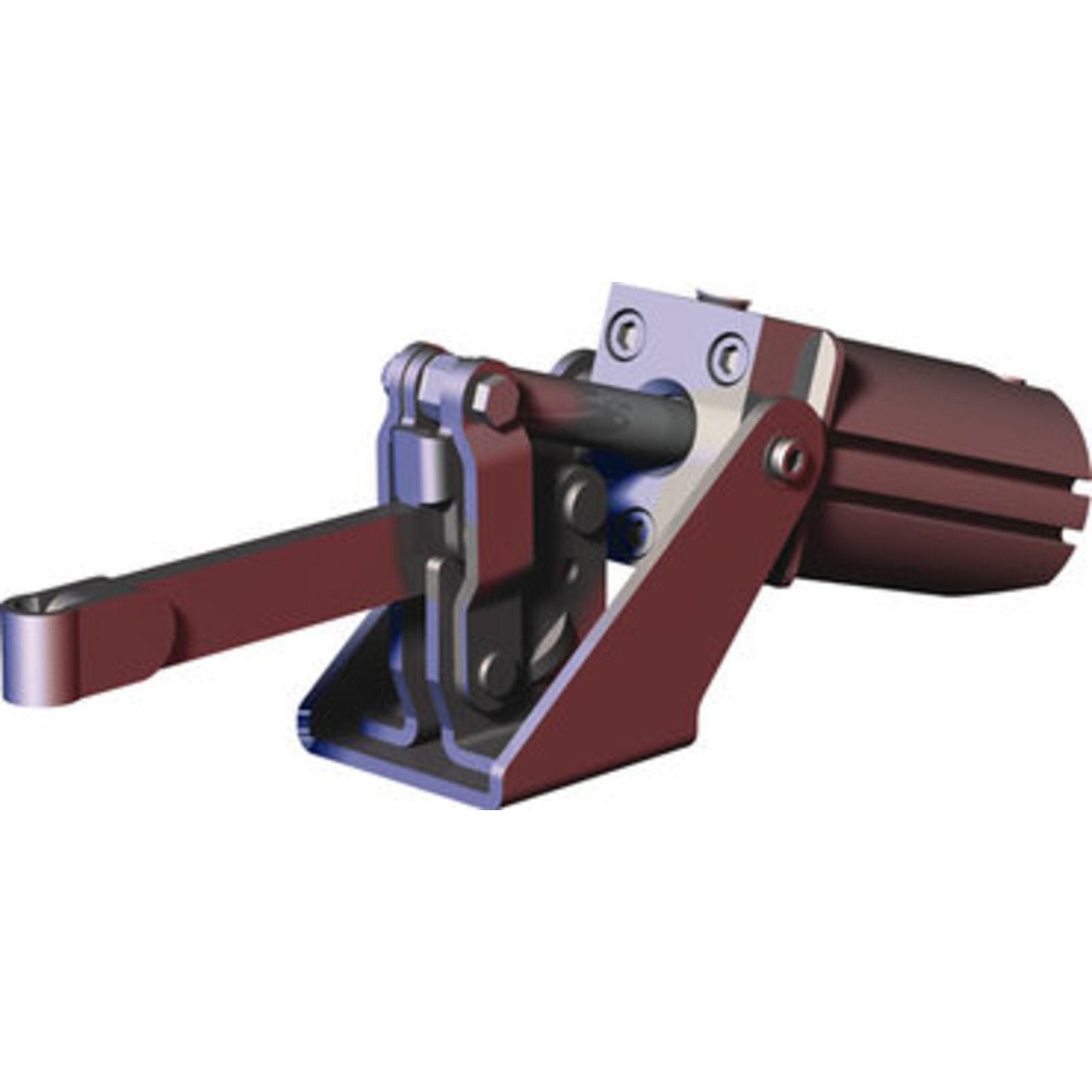

DESTACO 807-UE PNEUMATIC TOGGLE CLAMP WITH G-PORTS

Brand: DESTACO

DESTACO 807-UE PNEUMATIC TOGGLE CLAMP WITH G-PORTS

SKU: DE-STA-CO-807-UE
MPN: 807-UE

  • $194.40
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Get the best of both worlds with the DESTACO 807-UE PNEUMATIC TOGGLE CLAMP WITH G-PORTS. This pneumatic version of Destaco's manual clamp models 207-U and 207-S offers smooth operation with built-in flow control and precise positioning with a magnetic ring piston. The clamp is also compatible with both T-slot and round sensors, making it adaptable to a variety of setups. Say goodbye to the hassle of external flow controls with the built-in flow restriction. Upgrade to the pneumatic version of the 207 manual toggle clamp with ease, as it comes supplied with flanged washers and has a maximum holding capacity of 375 lbsf. Don't miss out on this u-bar style clamp with a cylinder bore of 1.26 inches, a clamp arm length of 2.510 inches, and a height under clamp arm of 1.380 inches.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 807-UE PNEUMATIC TOGGLE CLAMP WITH G-PORTS

DESTACO 807-UE PRODUCT DETAILS

Product Details

Pneumatic version of our manual clamp models 207-U and 207-S. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.

  • Sensor ready for round or T-slot sensors.
  • Built-in flow restriction eliminates need for external flow controls
  • Pneumatic version of 207 manual toggle clamp
  • Supplied with flanged washers
  • Replacement Clamp Assembly: 807-U-LC
Maximum Holding Capacity (lbsf) 375
Clamp Arm Length (in) 2.510
Height Under Clamp Arm (in) 1.380
Cylinder Bore (in) 1.26
Clamp Arm Style u-bar
Spindle Included? Yes
Application - Welding Fair/Medium
Application - Assembly Excellent/High
Duty Cycle Fair/Medium
Port G Ports
Operating Temperature -10° to 90°C (-14° to 194° F)
Product Type Pneumatic Toggle Clamp
Air Port size G-1/8
Exerting Force (lbf) 576
Air Consumption (ft³) 0.015
Replacement Seal Kit 802450-32-1-00
Weight (lb) 1.66
Product Series Description Toggle Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group Standard pneumatic clamps
