Brand: DESTACO

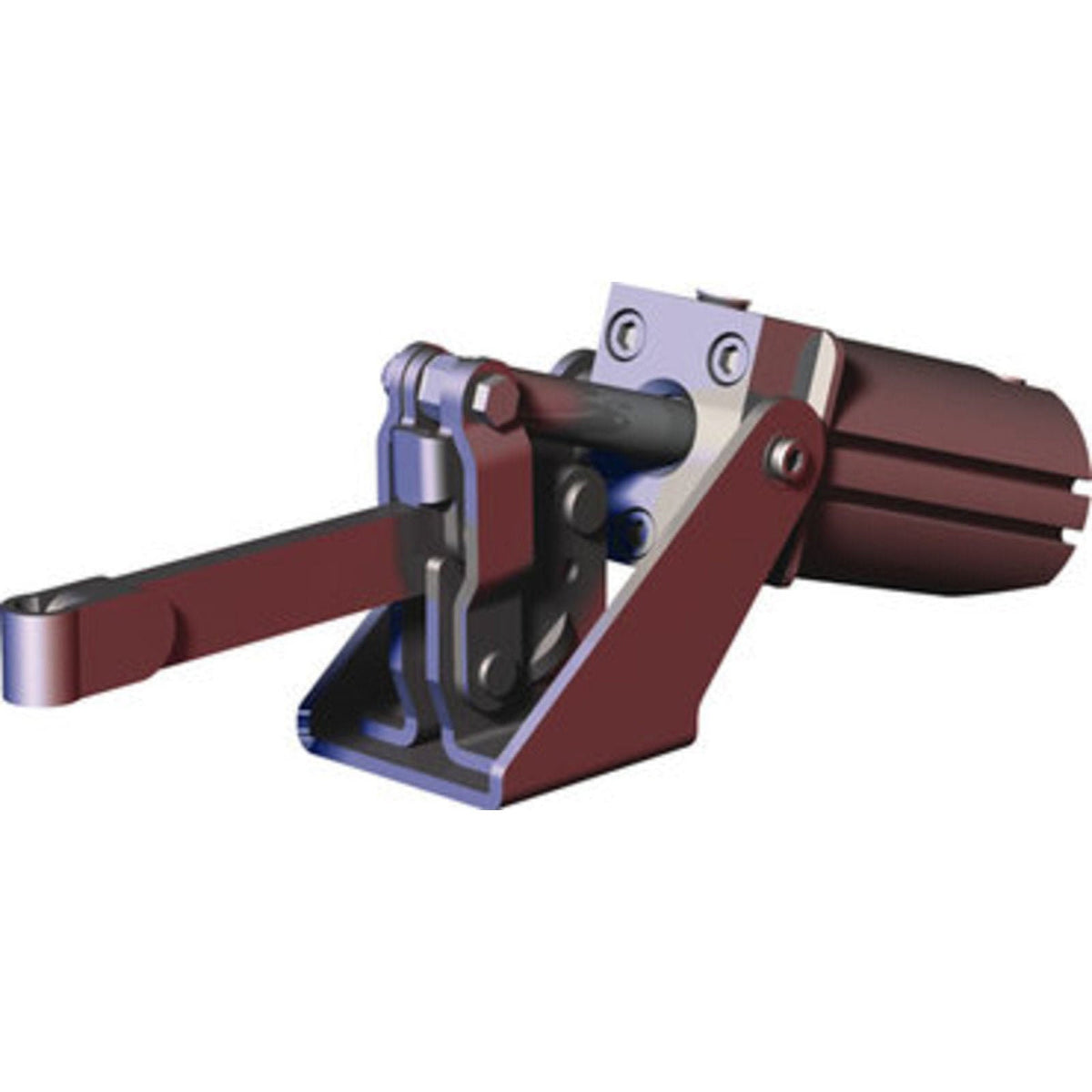

DESTACO 807-U-HT HIGH TEMP PNEUMATIC TOGGLE CLAMP
SKU: DE-STA-CO-807-U-HT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Get ready for smooth, efficient and reliable clamping with DESTACO 807-U-HT HIGH TEMP PNEUMATIC TOGGLE CLAMP! This pneumatic version of the tried and tested manual Destaco models 207-U and 207-S features a built-in flow control for seamless operation and a magnetic ring piston for easy position sensing. Whether you prefer T-slot or round sensors, our product accommodates both (8EA-109-1 and 810169 respectively). With a built-in flow restriction, say goodbye to the need for external flow controls. Add this to your toolkit today and experience the maximum holding capacity of 375 lbsf, a 2.510 inch clamp arm length, 1.380 inch height under the clamp arm and a 1.26 inch cylinder bore.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 807-U-HT HIGH TEMP PNEUMATIC TOGGLE CLAMP
Product Details
Pneumatic version of our manual clamp models 207-U and 207-S. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Sensor ready for round or T-slot sensors.
- Built-in flow restriction eliminates the need for external flow controls
- Pneumatic version of 207 manual toggle clamp
- Supplied with flanged washers
- Replacement Clamp Assembly: 807-U-LC
Maximum Holding Capacity (lbsf) | 375 |
Clamp Arm Length (in) | 2.510 |
Height Under Clamp Arm (in) | 1.380 |
Cylinder Bore (in) | 1.26 |
Clamp Arm Style | u-bar |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Duty Cycle | Fair/Medium |
Port | Standard Ports |
Operating Temperature | -10° to 90°C (-14° to 194° F) |
Product Type | Pneumatic Toggle Clamp |
Air Port size | 1/8 NPT |
Exerting Force (lbf) | 576 |
Air Consumption (ft³) | 0.015 |
Replacement Seal Kit | 802450-32-1-00 |
Weight (lb) | 1.66 |
Product Series Description | Toggle Clamp |
Product Function | Clamping |
Product Family | Light-Duty Pneumatic Clamping |
Product Group | Standard pneumatic clamps |
