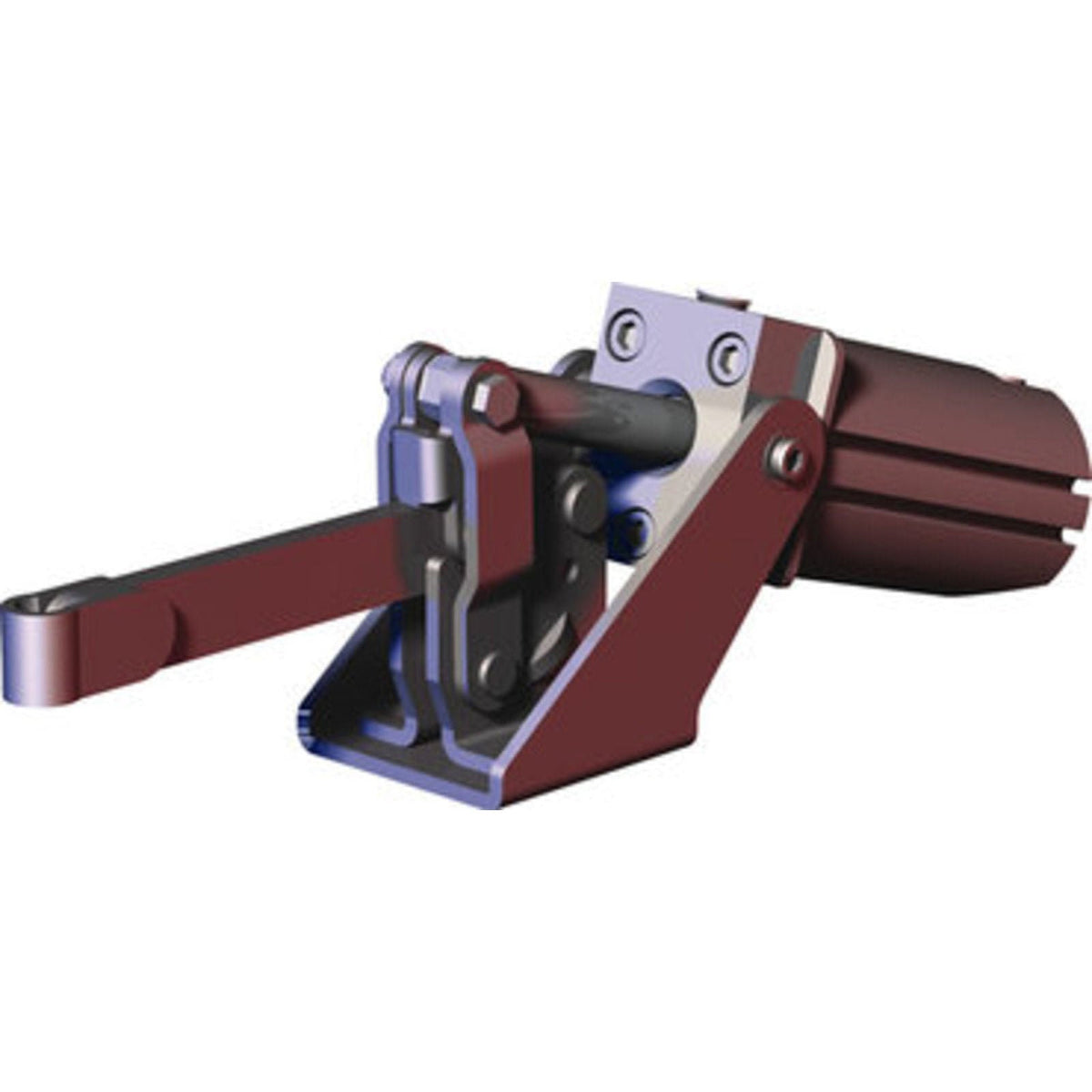

DESTACO 807-SE PNEUMATIC TOGGLE CLAMP WITH G-PORTS
SKU: DE-STA-CO-807-SE
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO 807-SE PNEUMATIC TOGGLE CLAMP WITH G-PORTS, a pneumatic version of our popular manual clamp models 207-U and 207-S. The pneumatic cylinder boasts built-in flow control for smooth and precise operation, along with a magnetic ring piston for accurate position sensing. You have the option to use either T-slot (8EA-109-1) or round (810169) sensors with this clamp, as it comes sensor ready for both types. Enjoy the convenience of a built-in flow restrictor, eliminating the need for external flow controls. This clamp also comes with a bolt retainer for secure fastening. For maximum holding capacity of 500 lbsf, choose model 807-S-LC. The clamp arm is 3.130 inches long and has a height of 1.380 inches under it.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 807-SE PNEUMATIC TOGGLE CLAMP WITH G-PORTS
Product Details
Pneumatic version of our manual clamp models 207-U and 207-S. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Sensor ready for round or T-slot sensors.
- Built-in flow restriction eliminates the need for external flow controls
- Pneumatic version of 207 manual toggle clamp
- Supplied with bolt retainer
- Models 807-U and 807-S have 1/8NPT ports
- Model 807-UE and 807-SE have G-1/8 ports
- Replacement Clamp Assembly: 807-S-LC
| Maximum Holding Capacity (lbsf) | 500 |
| Clamp Arm Length (in) | 3.130 |
| Height Under Clamp Arm (in) | 1.380 |
| Cylinder Bore (in) | 1.26 |
| Clamp Arm Style | solid |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Duty Cycle | Fair/Medium |
| Port | G Ports |
| Operating Temperature | -10° to 90°C (-14° to 194° F) |
| Product Type | Pneumatic Toggle Clamp |
| Air Port size | G-1/8 |
| Exerting Force (lbf) | 540 |
| Air Consumption (ft³) | 0.015 |
| Replacement Seal Kit | 802450-32-1-00 |
| Weight (lb) | 1.66 |
| Product Series Description | Toggle Clamp |
| Product Function | Clamping |
| Product Family | Light-Duty Pneumatic Clamping |
| Product Group | Standard pneumatic clamps |
