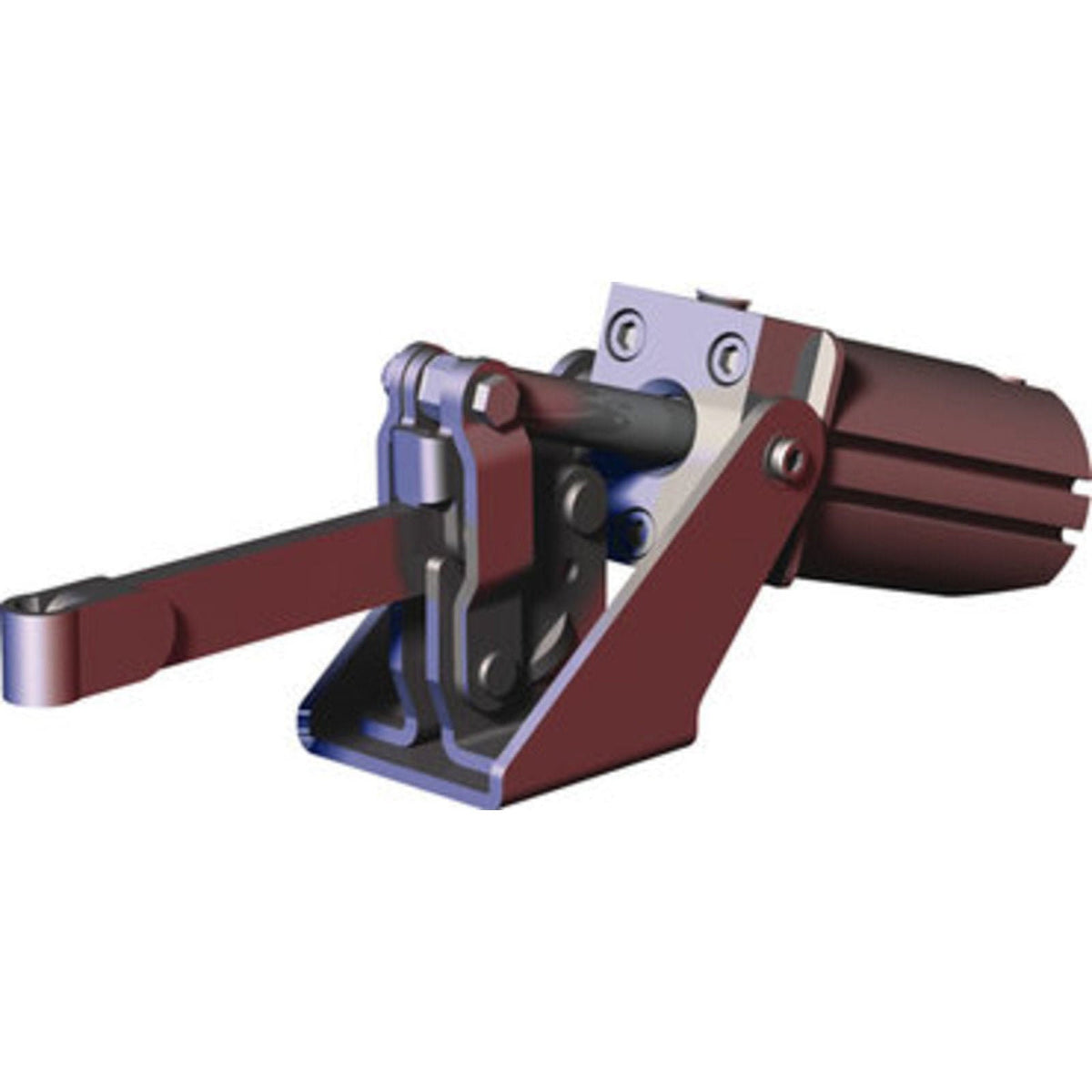

DESTACO 807-S PNEUMATIC TOGGLE CLAMP

SKU: DE-STA-CO-807-S
MPN: 807-S

$152.73
Unit price per
Save $19.18

Shipping calculated at checkout.

In-Stock: 10

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO 807-S PNEUMATIC TOGGLE CLAMP is a pneumatic version of Destaco's manual clamp models 207-U and 207-S. Featuring a built-in flow control for smooth operation and a magnetic ring piston for position sensing, this clamp is designed for convenience and ease of use. It can accommodate both T-slot (8EA-109-1) and round (810169) sensors and is sensor ready for either option. The built-in flow restriction eliminates the need for external flow controls, making it a compact and efficient choice. Additionally, it comes with a bolt retainer and has a maximum holding capacity of 500 lbsf. With a clamp arm length of 3.130 inches and a height under the clamp arm of 1.380 inches, it fits a variety of applications. The cylinder bore measures 1.26 inches and it has a solid clamp arm style. Choose the DESTACO 807-S PNEUMATIC TOGGLE CLAMP today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 807-S PNEUMATIC TOGGLE CLAMP

Pneumatic version of our manual clamp models 207-U and 207-S. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.

Sensor ready for round or T-slot sensors.
Built-in flow restriction eliminates the need for external flow controls
Pneumatic version of 207 manual toggle clamp
Supplied with bolt retainer
Replacement Clamp Assembly: 807-S-LC

Maximum Holding Capacity (lbsf)	500
Clamp Arm Length (in)	3.130
Height Under Clamp Arm (in)	1.380
Cylinder Bore (in)	1.26
Clamp Arm Style	solid
Application - Welding	Fair/Medium
Application - Assembly	Excellent/High
Duty Cycle	Fair/Medium
Port	Standard Ports
Operating Temperature	-10° to 90°C (-14° to 194° F)
Product Type	Pneumatic Toggle Clamp
Air Port size	1/8 NPT
Exerting Force (lbf)	540
Air Consumption (ft³)	0.015
Replacement Seal Kit	802450-32-1-00
Weight (lb)	1.66
Product Series Description	Toggle Clamp
Product Function	Clamping
Product Family	Light-Duty Pneumatic Clamping
Product Group	standard pneumatic clamps
