Brand: DESTACO

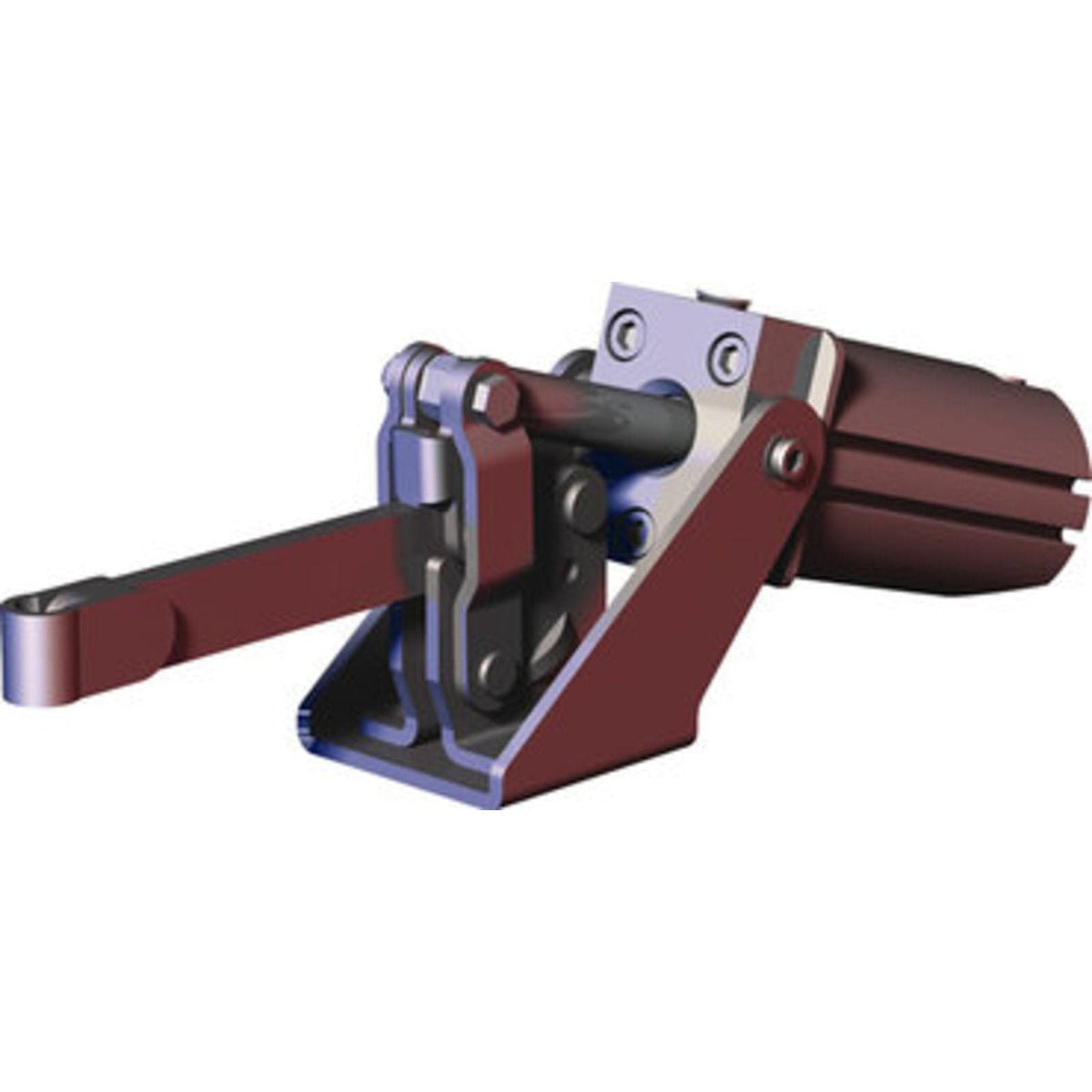

DESTACO 807-S-HT HIGH TEMP PNEUMATIC TOGGLE CLAMP
SKU: DE-STA-CO-807-S-HT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 807-S-HT HIGH TEMP PNEUMATIC TOGGLE CLAMP is the ultimate tool for any enthusiast who values efficient and smooth operation. With built-in flow control and a magnetic ring piston for position sensing, this clamp can accommodate both T-slot and round sensors. Say goodbye to external flow controls as the built-in restriction takes care of it all. Upgrade from the manual version, Destaco 207 clamp and experience a maximum holding capacity of 500 lbsf. With a clamp arm length of 3.130 inches and a height under clamp arm of 1.380 inches, this clamp is ready to tackle any job. Plus, the solid clamp arm style ensures durability and stability.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 807-S-HT HIGH TEMP PNEUMATIC TOGGLE CLAMP
Product Details
Pneumatic version of our manual clamp models 207-U and 207-S. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Sensor ready for round or T-slot sensors.
- Built-in flow restriction eliminates the need for external flow controls
- Pneumatic version of 207 manual toggle clamp
- Supplied with bolt retainer
- Replacement Clamp Assembly: 807-S-LC
| Maximum Holding Capacity (lbsf) | 500 |
| Clamp Arm Length (in) | 3.130 |
| Height Under Clamp Arm (in) | 1.380 |
| Cylinder Bore (in) | 1.26 |
| Clamp Arm Style | solid |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Duty Cycle | Fair/Medium |
| Port | Standard Ports |
| Operating Temperature | -10° to 90°C (-14° to 194° F) |
| Product Type | Pneumatic Toggle Clamp |
| Air Port size | 1/8 NPT |
| Exerting Force (lbf) | 540 |
| Air Consumption (ft³) | 0.015 |
| Replacement Seal Kit | 802450-32-1-00 |
| Weight (lb) | 1.66 |
| Product Series Description | Toggle Clamp |
| Product Function | Clamping |
| Product Family | Light-Duty Pneumatic Clamping |
| Product Group | Standard pneumatic clamps |
