Brand: Jergens Manufacturing

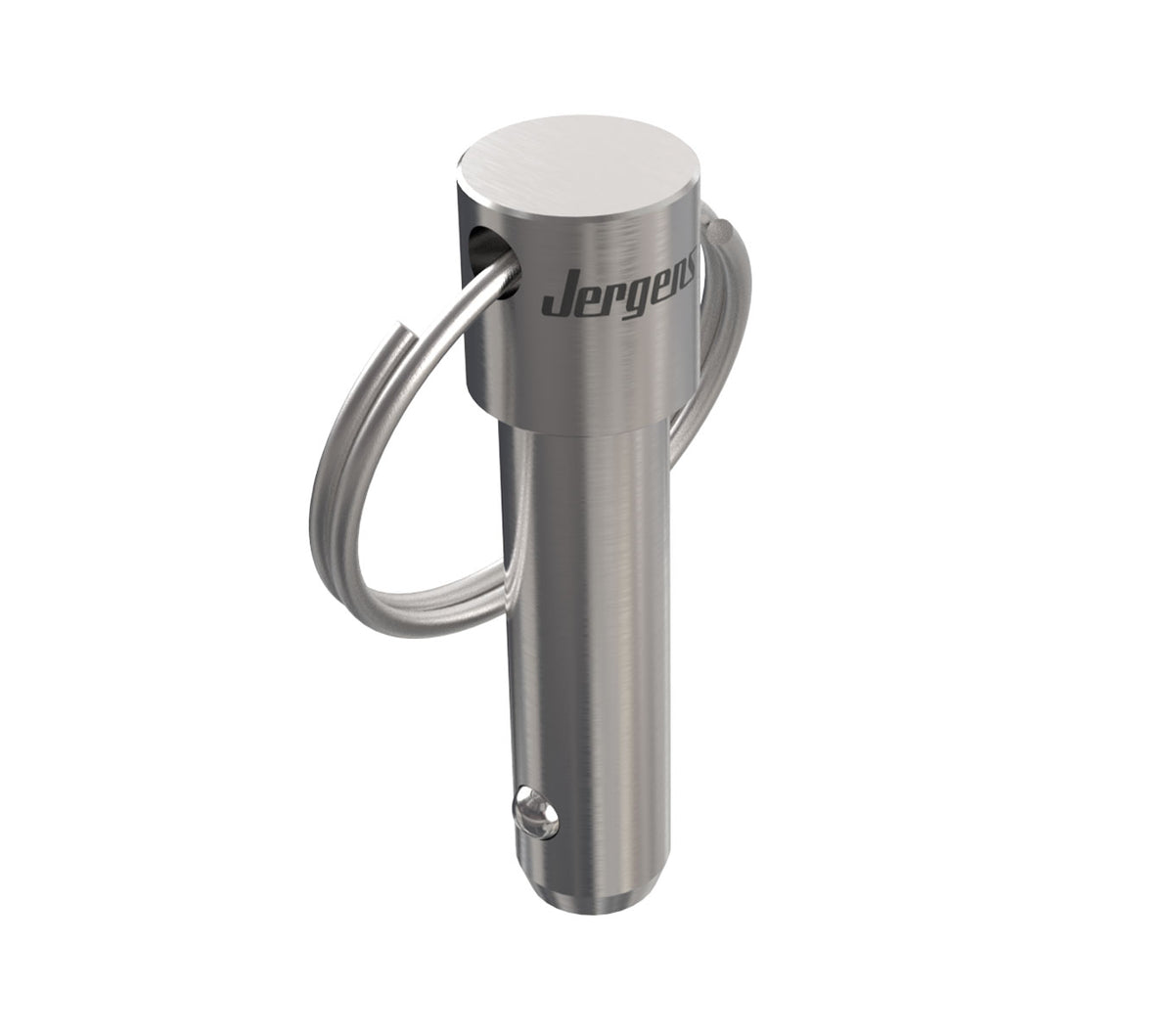

JERGENS KLP, HD DETENT PIN, 7/8 X 0.50, 17-4 SS - 804344
SKU: JG-804344
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Jergens product orders*
Short Description
JERGENS KLP, HD DETENT PIN, 7/8 X 0.50, 17-4 SS - 804344Category: Heavy Duty Detent Pins (inch)
Product Code: F135-03
*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JERGENS KLP, HD DETENT PIN, 7/8 X 0.50, 17-4 SS - 804344
Category: Heavy Duty Detent Pins (inch)
Product Code: F135-03
Category: 4948
Product Code: 111611

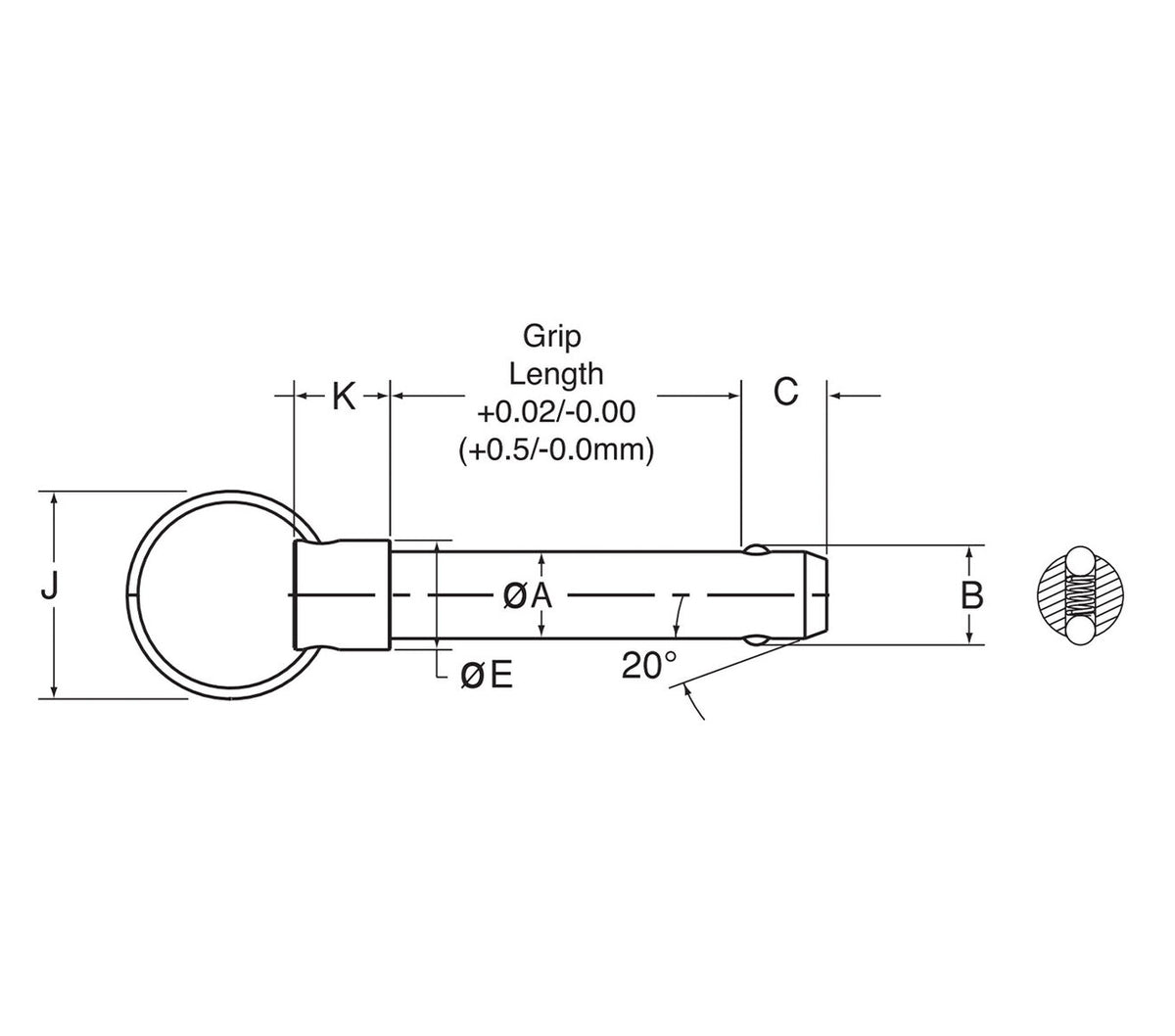

| Nom Pin Dia | B Min | C +.000/-.060 | E +/-.015 | J | K | Double Shear Strength-lbs. 17-4 Ph S.S. | Double Shear Strength-lbs S.S. (300) Series) | Pull Out Force Min. lbs. | Recommended Hole Dia. Max | Recommended Hole Dia. Min | Grip Length | Part Number | Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7/8 | 1.030 | .859 | 1.000 | 2.187 | .55 | 121,500 | 57,000 | 20 to 35 | 0.8820 | 0.8750 | 0.5 | 804344 | KLP, Heavy Duty Detent Pin, 7/8 x 0.5 SS |
*All Jergens orders must meet a $75 minimum*
