Brand: Jergens Manufacturing

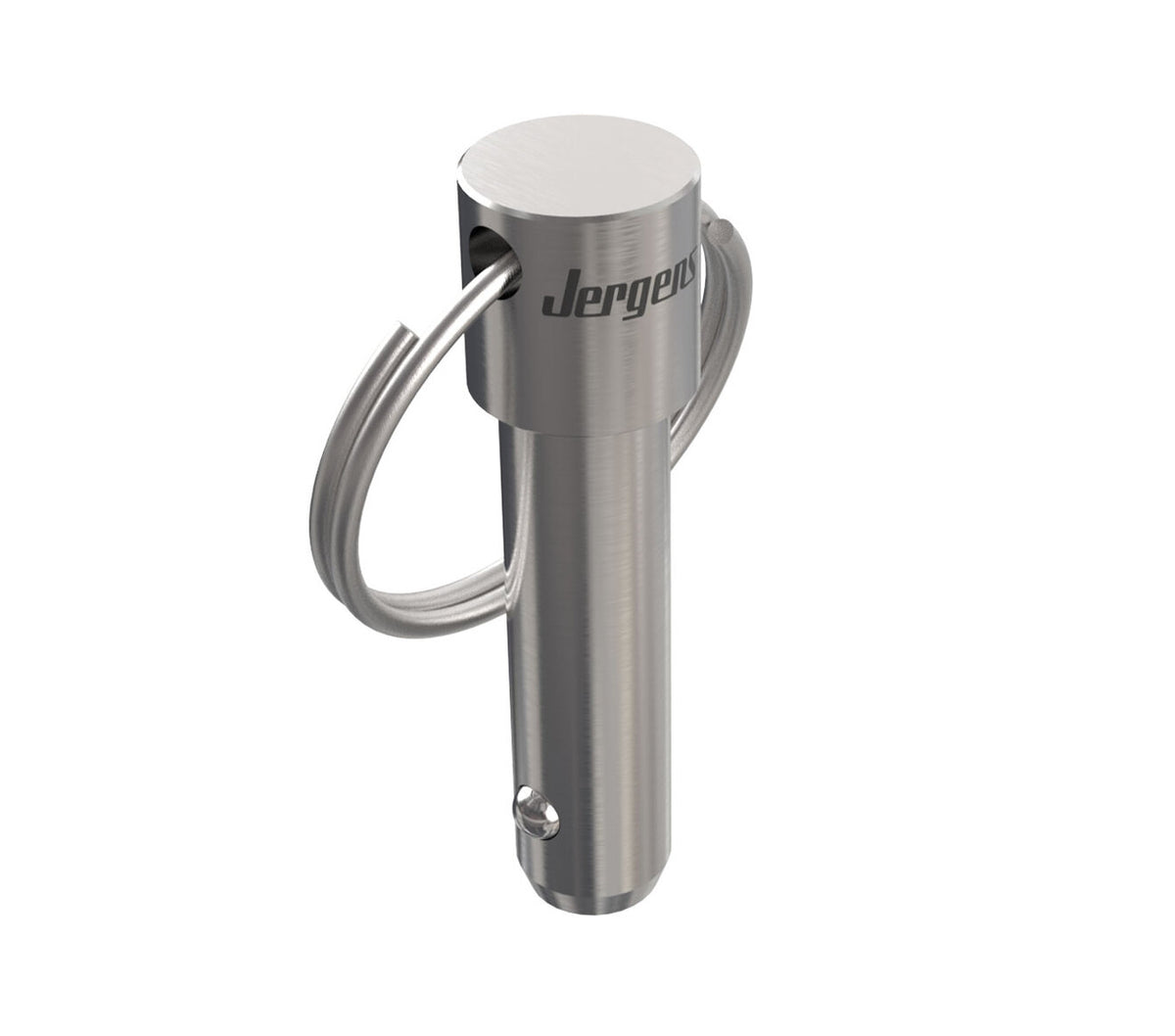

JERGENS KLP, HD DETENT PIN, 7/16 X 1.50, 17-4 SS - 804268
SKU: JG-804268
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Jergens product orders*
Short Description
JERGENS KLP, HD DETENT PIN, 7/16 X 1.50, 17-4 SS - 804268Category: Heavy Duty Detent Pins (inch)
Product Code: F135-03
*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JERGENS KLP, HD DETENT PIN, 7/16 X 1.50, 17-4 SS - 804268
Category: Heavy Duty Detent Pins (inch)
Product Code: F135-03
Category: 4948
Product Code: 111611

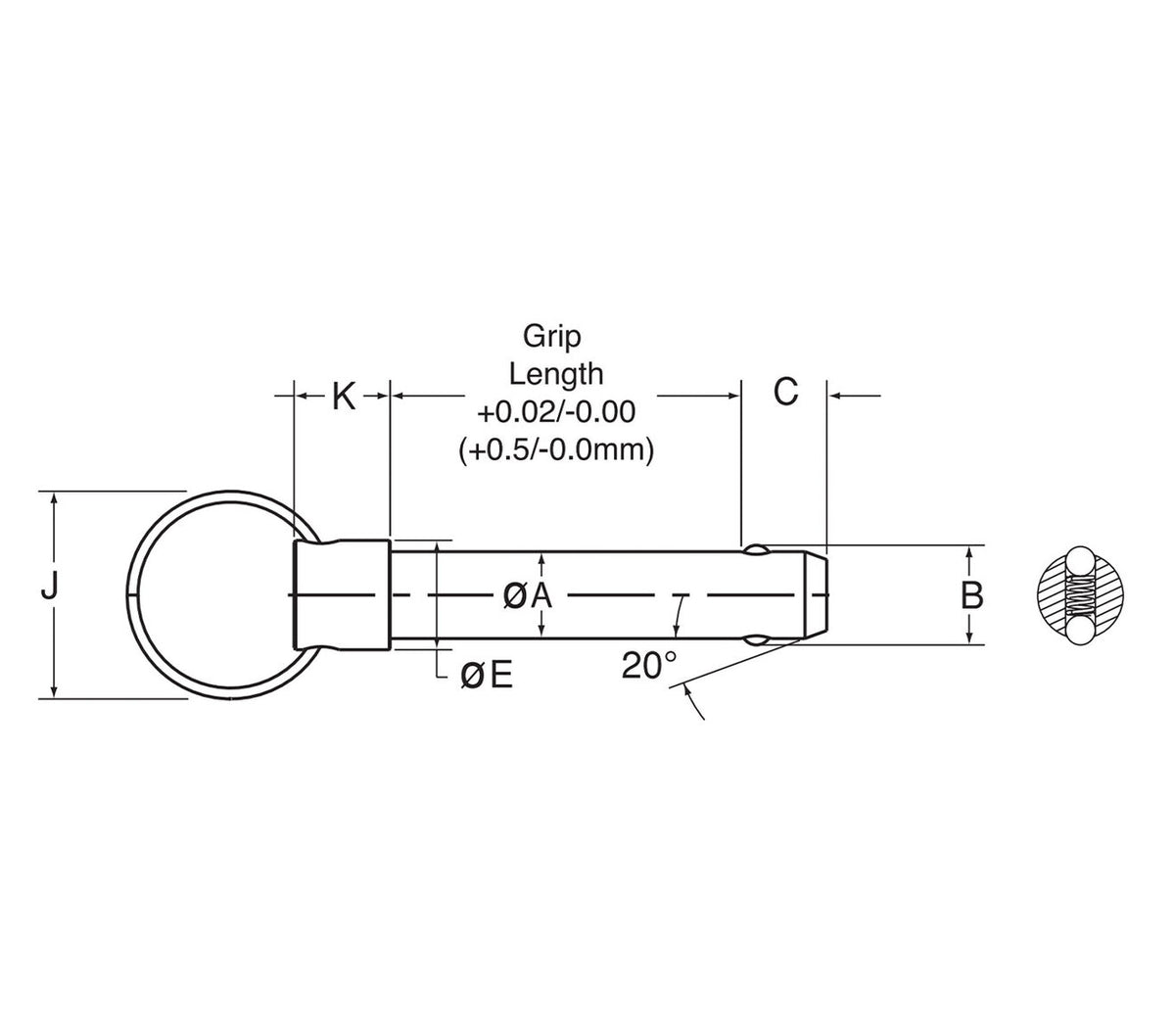

| Nom Pin Dia | B Min | C +.000/-.060 | E +/-.015 | J | K | Double Shear Strength-lbs. 17-4 Ph S.S. | Double Shear Strength-lbs S.S. (300) Series) | Pull Out Force Min. lbs. | Recommended Hole Dia. Max | Recommended Hole Dia. Min | Grip Length | Part Number | Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7/16 | .495 | .469 | .625 | 1.187 | .55 | 30,438 | 14,050 | 6 to 14 | 0.4425 | 0.4375 | 1.5 | 804268 | KLP, Heavy Duty Detent Pin, 7/16 x 1.5 SS |
*All Jergens orders must meet a $75 minimum*
