Brand: Jergens Manufacturing

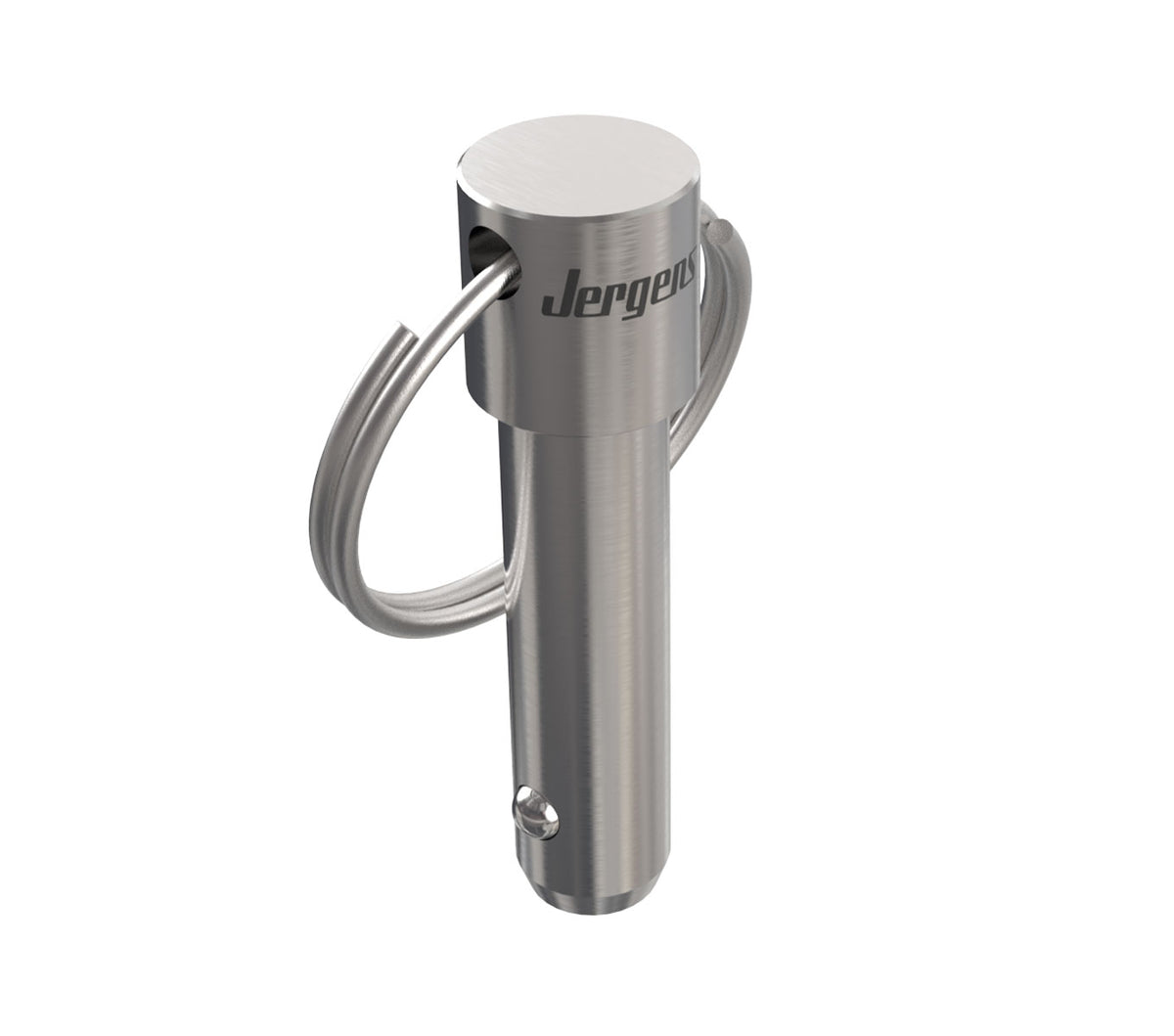

JERGENS KLP, HD DETENT PIN, 5/16 X 4.00, 17-4 SS - 804243
SKU: JG-804243
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Jergens product orders*
Short Description
JERGENS KLP, HD DETENT PIN, 5/16 X 4.00, 17-4 SS - 804243Category: Heavy Duty Detent Pins (inch)
Product Code: F135-03
*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JERGENS KLP, HD DETENT PIN, 5/16 X 4.00, 17-4 SS - 804243
Category: Heavy Duty Detent Pins (inch)
Product Code: F135-03
Category: 4948
Product Code: 111611

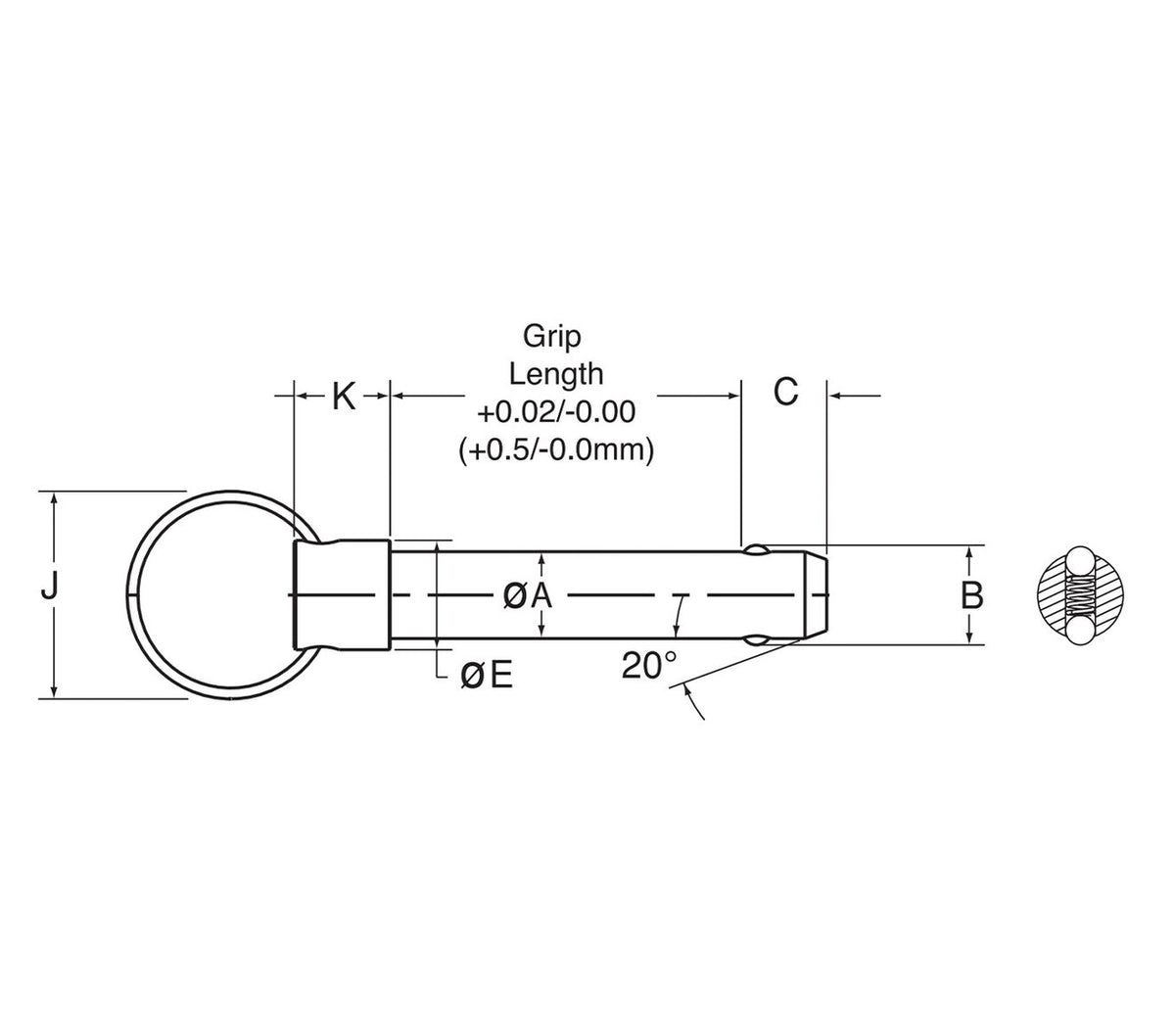

| Nom Pin Dia | B Min | C +.000/-.060 | E +/-.015 | J | K | Double Shear Strength-lbs. 17-4 Ph S.S. | Double Shear Strength-lbs S.S. (300) Series) | Pull Out Force Min. lbs. | Recommended Hole Dia. Max | Recommended Hole Dia. Min | Grip Length | Part Number | Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5/16 | .360 | .359 | .438 | 1.187 | .50 | 15,075 | 7,100 | 2 to 7 | 0.3165 | 0.3125 | 4 | 804243 | KLP, Heavy Duty Detent Pin, 5/16 x 4 SS |
*All Jergens orders must meet a $75 minimum*
