Brand: Jergens Manufacturing

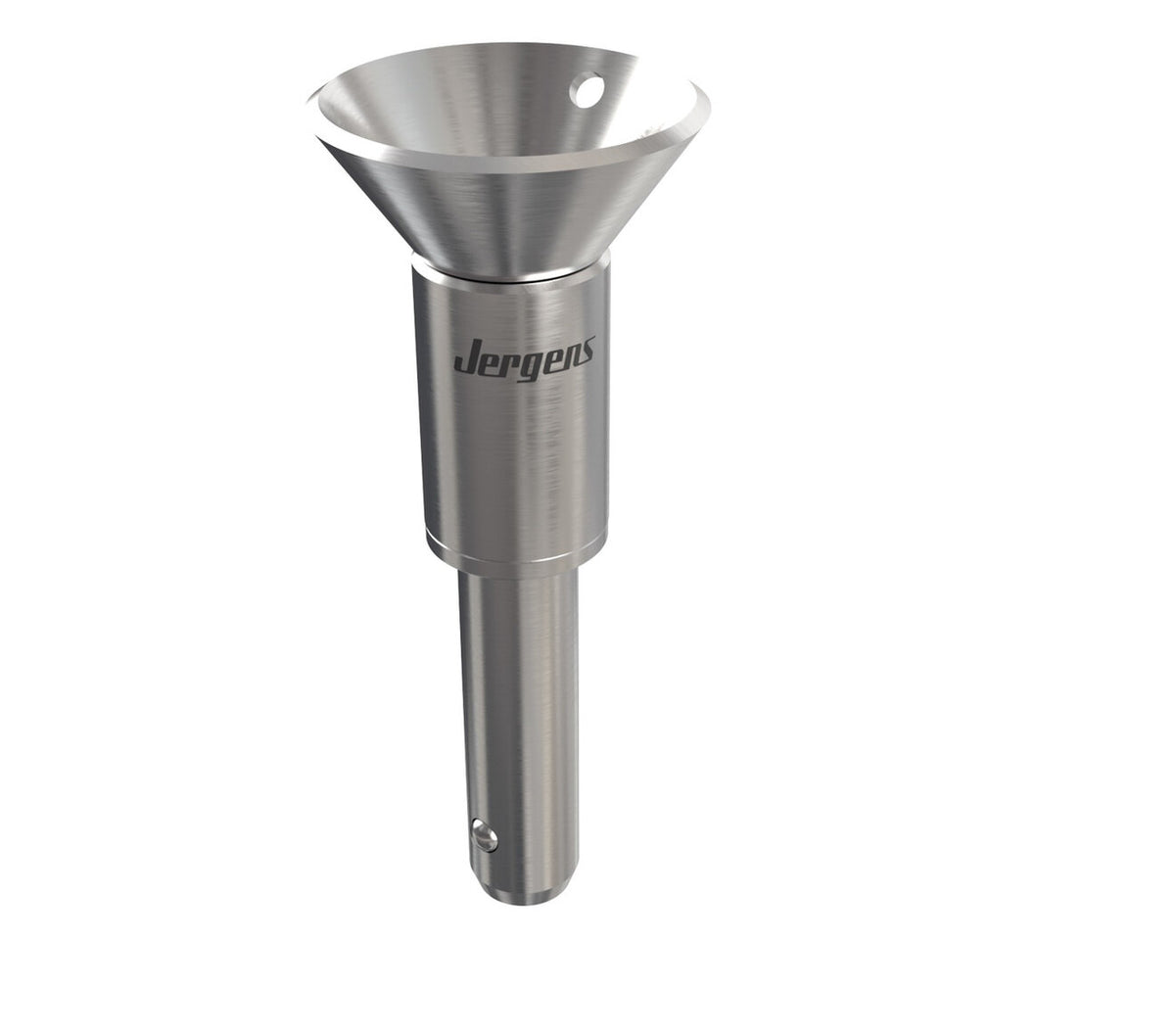

JERGENS KLP, RECESSED BUTTON, 3/16 X 1.00 SS - 803002
SKU: JG-803002
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Jergens product orders*
Short Description
JERGENS KLP, RECESSED BUTTON, 3/16 X 1.00 SS - 803002Category: Recessed Button Handle (Inch)
Product Code: F135-01
*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JERGENS KLP, RECESSED BUTTON, 3/16 X 1.00 SS - 803002
Category: Recessed Button Handle (Inch)
Product Code: F135-01
Category: 4945
Product Code: 111604

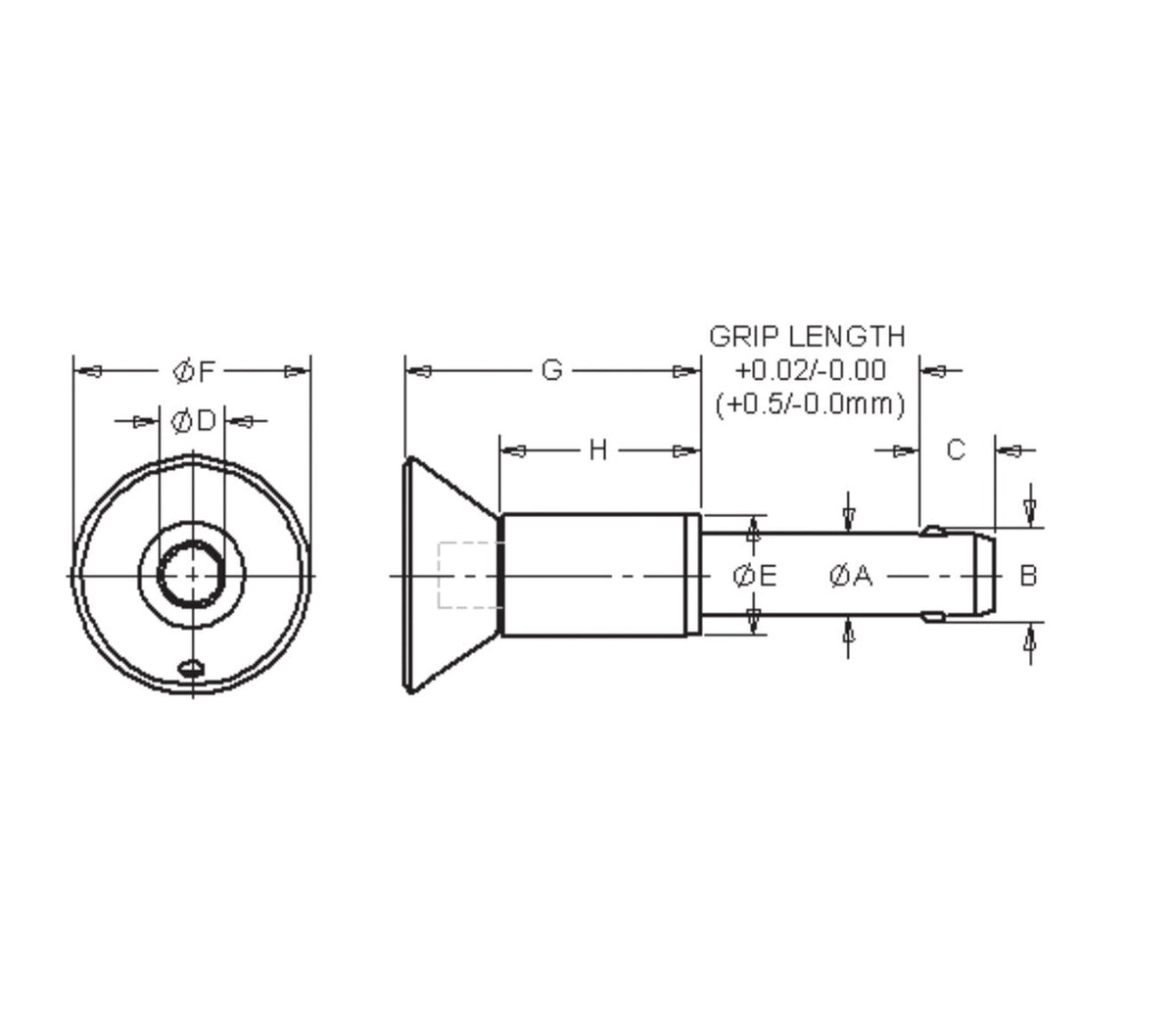

| Nom Pin Dia. | A Min | B +/- .005 | C +0.00/-0.04 | D Min | D Max | E Min | E Max | F +/-.020 | G +/-.020 | H +/-.020 | Grip Length | Part Number | Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/16 | 0.1885 | 0.220 | 0.260 | 0.250 | 0.310 | 0.310 | 0.530 | 0.800 | 0.990 | 0.710 | 1 | 803002 | KLP, Recessed Button Handle, 3/16 x 1 SS |
*All Jergens orders must meet a $75 minimum*
