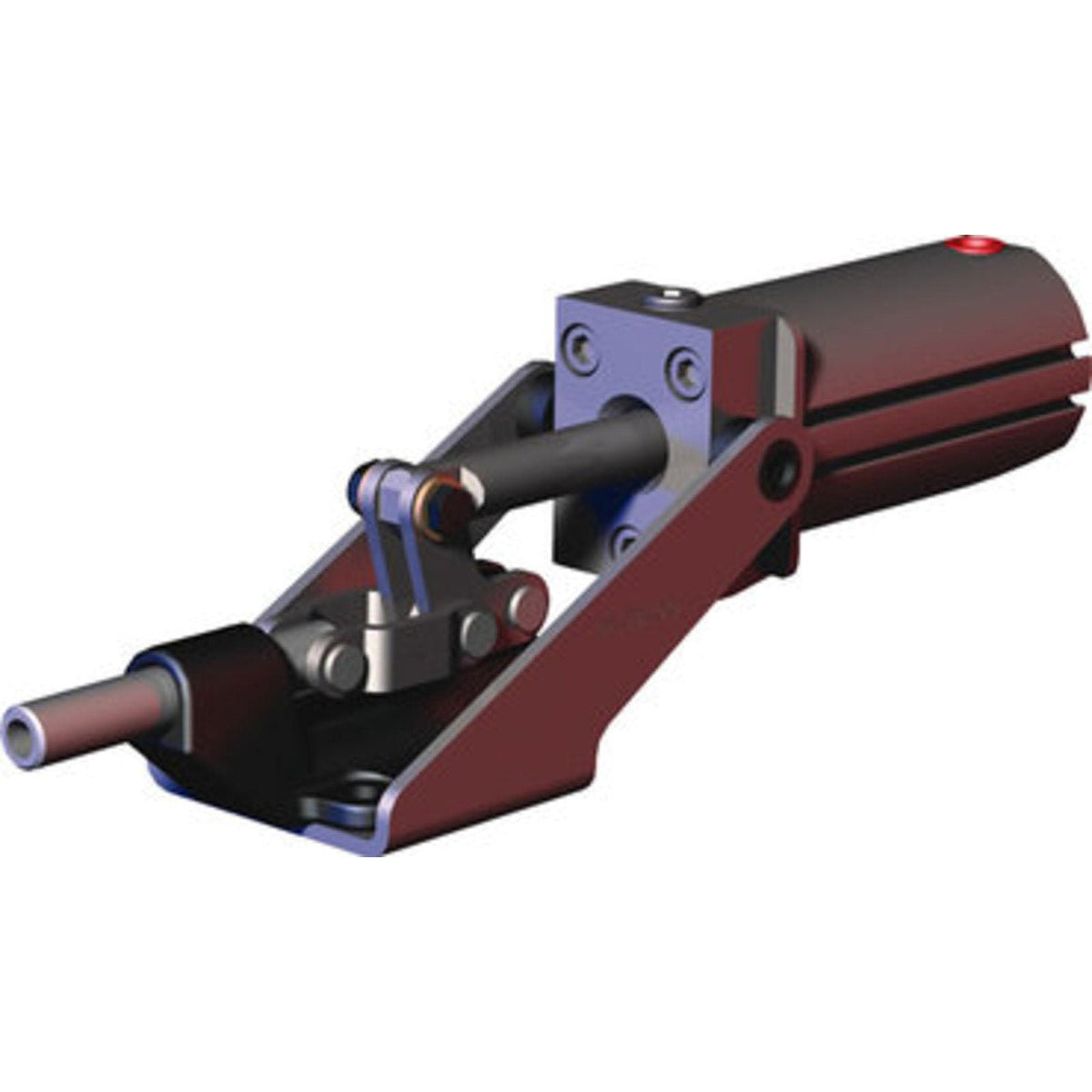

DESTACO 803-ME PNEUMATIC STRAIGHT LINE ACTION CLAMP

Brand: DESTACO

DESTACO 803-ME PNEUMATIC STRAIGHT LINE ACTION CLAMP

SKU: DE-STA-CO-803-ME
MPN: 803-ME

  • $268.03
    Unit price per
Shipping calculated at checkout.

Only -1 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the power and efficiency of the DESTACO 803-ME PNEUMATIC STRAIGHT LINE ACTION TOGGLE CLAMP. This pneumatic version offers the same reliability and precision as Destaco's manual model 603, with added features like built-in flow control and a magnetic ring piston for precise position sensing. Easily accommodate round or T-slot style sensors with our versatile design. Upgrade to the pneumatic Model 603 today and feel the difference in performance and precision. Replacement Clamp Assembly: 803-M-LC Plunger Travel (in) 0.75 Cylinder Bore (in) 1.26 Plunger Height (in) 1.090 Maxmum Holding Capacity (lb) 600 Plunger Thread M8.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 803-ME PNEUMATIC STRAIGHT LINE ACTION CLAMP

DESTACO 803-ME PRODUCT DETAILS

Pneumatic version of our manual clamp model 603. The pneumatic cylinder features built-in flow control for smooth operation and a magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.

  • Pneumatic version of Model 603 manual straight line action clamp
  • Sensor ready for round or T-slot style sensors
  • Replacement Clamp Assembly: 803-M-LC
Plunger Travel (in) 0.75
Cylinder Bore (in) 1.26
Plunger Height (in) 1.090
Maxmum Holding Capacity (lb) 600
Plunger Thread M8
Application - Welding Fair/Medium
Application - Assembly Excellent/High
Duty Cycle Fair/Medium
Operating Temperature -10° to 90°C (-14° to 194° F)
Product Type Pneumatic Straight Line Plunger Clamp
Air Port size G-1/8
Exerting Force (lbf) 675
Air Consumption (ft³) 0.015
Replacement Seal Kit 802450-32-1-00
Weight (lb) 1.86
Product Series Description Toggle Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group standard pneumatic clamps
