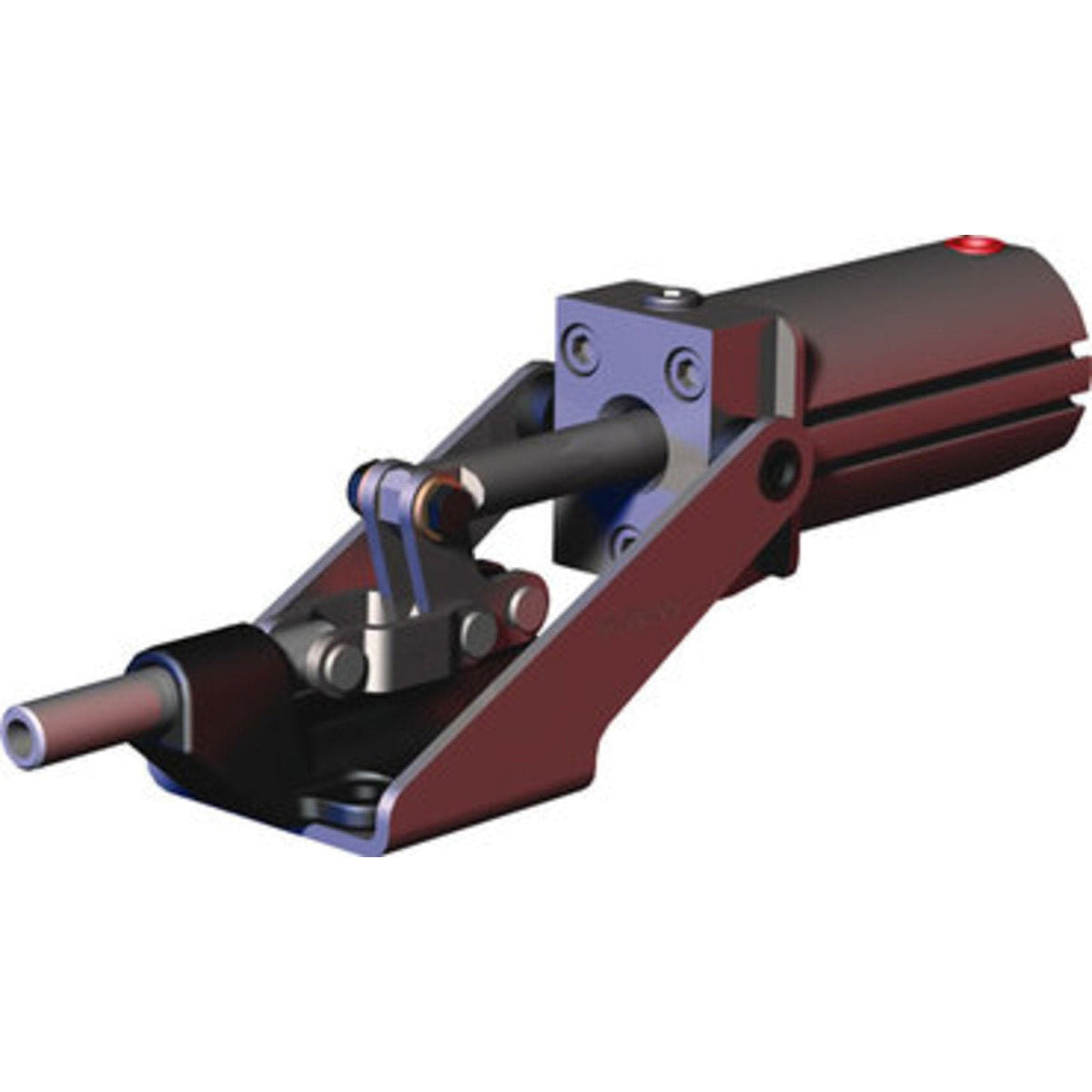

DESTACO 803 CLAMP PNEUMATIC STRAIGHT-LINE

Brand: DESTACO

DESTACO 803 CLAMP PNEUMATIC STRAIGHT-LINE

SKU: DE-STA-CO-803
MPN: 803

  • $216.12
    Unit price per
  • Save $27.14
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Introducing the revolutionary DESTACO 803 Pneumatic Toggle Clamp - an innovative upgrade of the beloved Destaco Model 603 manual clamp. Designed for smooth and efficient operation, this straight-line action clamp is sensor ready and can accommodate both round and T-slot style sensors. The 803-LC Replacement Clamp Assembly boasts impressive stats including a weight of just 1.85 lbs, a plunger travel of 0.75 inches, and a cylinder bore of 32mm. With a plunger height of 1.09 inches and a 1/8 NPT port size, this clamp offers a maximum holding capacity of 600 lbs. Don't miss out on the enhanced performance of the 803 Pneumatic Clamp - available now with a 5/16-18 plunger thread!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 803 CLAMP PNEUMATIC STRAIGHT-LINE

  • Pneumatic version of Model 603 manual straight line action clamp
  • Sensor ready for round or T-slot style sensors
  • Replacement Clamp Assembly: 803-LC
Weight (lb) 1.85
Plunger Travel (in) 0.75
Cylinder Bore (mm) 32
Plunger Height (in) 1.09
Port Size 1/8 NPT
Maximum Holding Capacity (lb) 600
Plunger Thread 5/16-18
Application - Welding Fair/Medium
Application - Assembly Excellent/High
Duty Cycle Fair/Medium
Operating Temperature -10° to 90°C (-14° to 194° F)
Product Type Pneumatic Straight Line Plunger Clamp
Exerting Force (N) 3015
Exerting Force (lbf) 675
Air Consumption (dm³) 0.42
Air Consumption (ft³) 0.015
Replacement Seal Kit 802450-32-1-00
