Brand: DESTACO

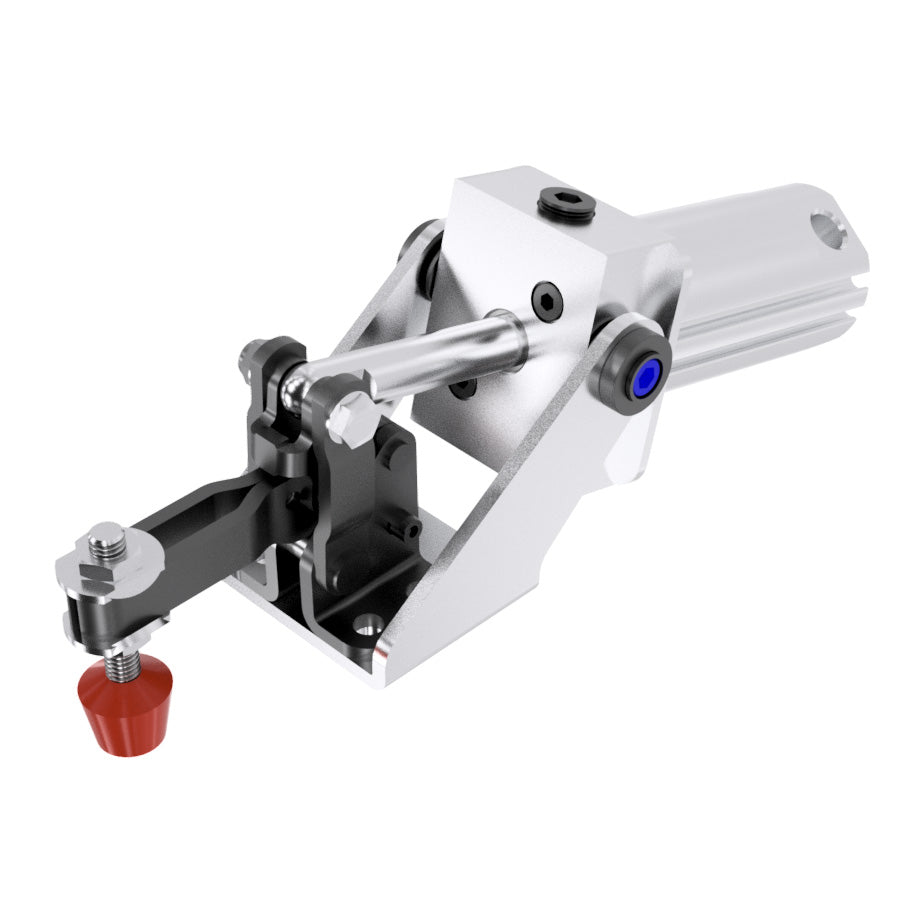

DESTACO 802-UE PNEUMATIC TOGGLE CLAMP WITH G-PORTS
SKU: DE-STA-CO-802-UE
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 802-UE PNEUMATIC TOGGLE CLAMP WITH G-PORTS is perfect for a variety of welding and assembly tasks. Designed for light-duty use, it is sensor ready and features both T-slot and round sensor compatibility. This pneumatic version of the 202-U manual toggle clamp boasts a maximum holding capacity of 200 lbs and has a clamp arm length of 1.73 inches. Weighing only 1.61 lbs, with a height under clamp arm of 1.06 inches and a cylinder bore of 32mm, this clamp is both lightweight and powerful. The 802-UE model has G-1/8 ports. Don't miss out on the convenience and versatility of this top-of-the-line pneumatic clamp!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO802-UE PNEUMATIC TOGGLE CLAMP WITH G-PORTS
- For light-duty welding and assembly applications
- Sensor ready for T-slot or round sensors
- Pneumatic version of 202-U manual toggle clamp
- Model 802-U has 1/8NPT ports
- Model 802-UE has G-1/8 ports
| Maximum Holding Capacity (lb) | 200 |
| Clamp Arm Length (in) | 1.73 |
| Weight (lb) | 1.61 |
| Height Under Clamp Arm (in) | 1.06 |
| Cylinder Bore (mm) | 32 |
| Port Size | G-1/8 |
| Port Size | G-1/8 |
| Spindle Included? | Yes |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Duty Cycle | Poor/Low |
| Operating Temperature | -10° to 90°C (-14° to 194° F) |
| Product Type | Pneumatic Toggle Clamp |
| Exerting Force (N) | 2010 |
| Exerting Force (lbf) | 450 |
| Air Consumption (dm³) | 0.34 |
| Air Consumption (ft³) | 0.012 |
| Replacement Seal Kit | 802450-32-1-00 |
