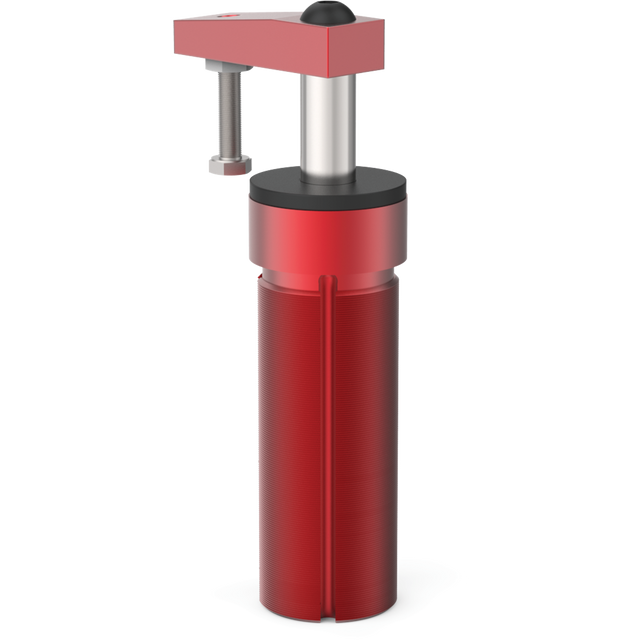

DESTACO 8016 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Brand: DESTACO

DESTACO 8016 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

SKU: DE-STA-CO-8016
MPN: 8016

  • $353.21
    Unit price per
  • Save $49.89
Shipping calculated at checkout.

In-Stock: 1

Only 1 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Unlock the full potential of your welding and assembly projects with the DESTACO 8016 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL. These reliable and proven designs are perfect for various applications and can easily be mounted in tapped or through-holes. The tapered piston rod and included clamping arm make it compatible with round style sensors, while the high clamping force of 80 N (18 lbf.) at 5 bar (72 psi) ensures a secure hold. Upgrade your clamping capabilities with the DESTACO 8016 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL today!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 8016 - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The imperial threaded bodies can be mounted in a tapped hole or a through-hole for recessed mounting. Tapered piston rod allows the clamping arm

  • Sensor ready for round style sensors
  • Clamping arm and spindle included. Available without clamping arm, specify -LA
  • Left-Hand Swing

Stroke (mm) 21.5
Stroke (in) 0.850
Cylinder Bore (mm) 19.1
Cylinder Bore (in) 0.75
Clamping Force @ 5Bar[72Psi] (N) 80
Clamping Force @ 5Bar[72Psi] (lbf.) 18
Mount Threaded Body
Replacement Seal Kit 801560
Swing Direction LH
Air Port size 10-32
Air Consumption (per double stroke at 5 bar) (dm³) 0.060
Air Consumption (per double stroke at 7 psi) (in³) 0.002
Stroke during rotation (mm) 11.8
Stroke during rotation (in) 0.47
Vertical clamp stroke (mm) 9.7
Vertical clamp stroke (in) 0.38
Sensor Ready Yes
Weight (kg) 0.45
Weight (lb) 1.00
Product Series Description Swing Clamp
