Brand: DESTACO

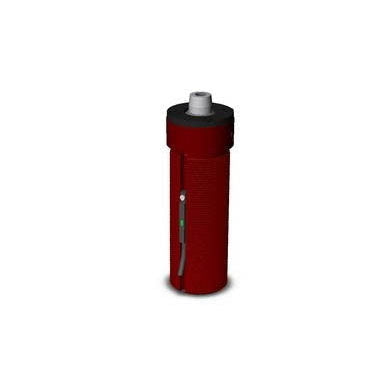

DESTACO 8015-LA - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

SKU: DE-STA-CO-8015-LA
MPN: 8015-LA

$342.51
Unit price per
Save $26.49

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the proven and reliable design of DESTACO 8015-LA Threaded Body Style Pneumatic Swing Clamps in a wide variety of applications like welding and assembly. These imperial threaded bodies can easily mount in a tapped or through hole, featuring a tapered piston rod and round sensor compatibility. Choose the right-hand swing stroke of 21.5mm (0.850in) and a cylinder bore of 19.1mm (0.75in) for 80N (18lbf) of clamping force at 5Bar (72Psi). Don't miss out on the opportunity to enhance your clamping experience with this must-have product.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 8015-LA - THREADED BODY STYLE PNEUMATIC SWING CLAMPS - IMPERIAL

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. The imperial threaded bodies can be mounted in a tapped hole or a through hole for recessed mounting. Tapered piston rod allows the clamping arm

Sensor ready for round style sensors
Clamping Arm not included
Right-Hand Swing

Stroke (mm)	21.5
Stroke (in)	0.850
Cylinder Bore (mm)	19.1
Cylinder Bore (in)	0.75
Clamping Force @ 5Bar[72Psi] (N)	80
Clamping Force @ 5Bar[72Psi] (lbf.)	18
Mount	Threaded Body
Replacement Seal Kit	801560
Swing Direction	RH
Air Port size	10-32
Air Consumption (per double stroke at 5 bar) (dm³)	0.060
Air Consumption (per double stroke at 7 psi) (in³)	0.002
Stroke during rotation (mm)	11.8
Stroke during rotation (in)	0.47
Vertical clamp stroke (mm)	9.7
Vertical clamp stroke (in)	0.38
Sensor Ready	Yes
Weight (kg)	0.45
Weight (lb)	1.00
Product Series Description	Swing Clamp
