Brand: DESTACO

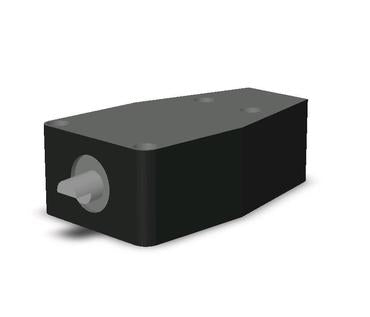

DESTACO 800 - PNEUMATIC RETRACTOR CLAMP
SKU: DE-STA-CO-800
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 800 - PNEUMATIC RETRACTOR CLAMPLow profile pneumatic retractor clamp. Arm moves straight forward and then pivots down to clamp workpiece.
Low profile and compact for mounting in tight spaces
Uniform clamping force throughout full stroke
Accommodates variable workpiece thickness
Single acting - air advance, spring return
How it works:
Clamp arm retracts fully for loading and unloading.
Clamp arm moves straight forward.
Clamp arm pivots down to hold workpiece.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 800 - PNEUMATIC RETRACTOR CLAMP
Product Details
Low profile pneumatic retractor clamp. Arm moves straight forward and then pivots down to clamp workpiece.
- Low profile and compact for mounting in tight spaces
- Uniform clamping force throughout full stroke
- Accommodates variable workpiece thickness
- Single acting - air advance, spring return
How it works:
- Clamp arm retracts fully for loading and unloading.
- Clamp arm moves straight forward.
- Clamp arm pivots down to hold workpiece.
Clamping Range (mm) | 2.3 |
Clamping Range (in) | 0.900 |
Arm Stroke (mm) | 12.7 |
Arm Stroke (in) | 0.500 |
Port Size | 1/4 NPT |
Application - Welding | Fair/Medium |
Application - Assembly | Fair/Medium |
Application - Machining | Excellent/High |
Duty Cycle | Excellent/High |
Product Type | Pneumatic Retractor Clamps |
Inlet Pressure (bar) | 4.8-10.3 |
Inlet Pressure (PSI) | 70-150 |
Weight (kg) | 1.13 |
Weight (lb) | 2.50 |
Product Series Description | Toggle Clamp |
