Brand: Morse Cutting Tools

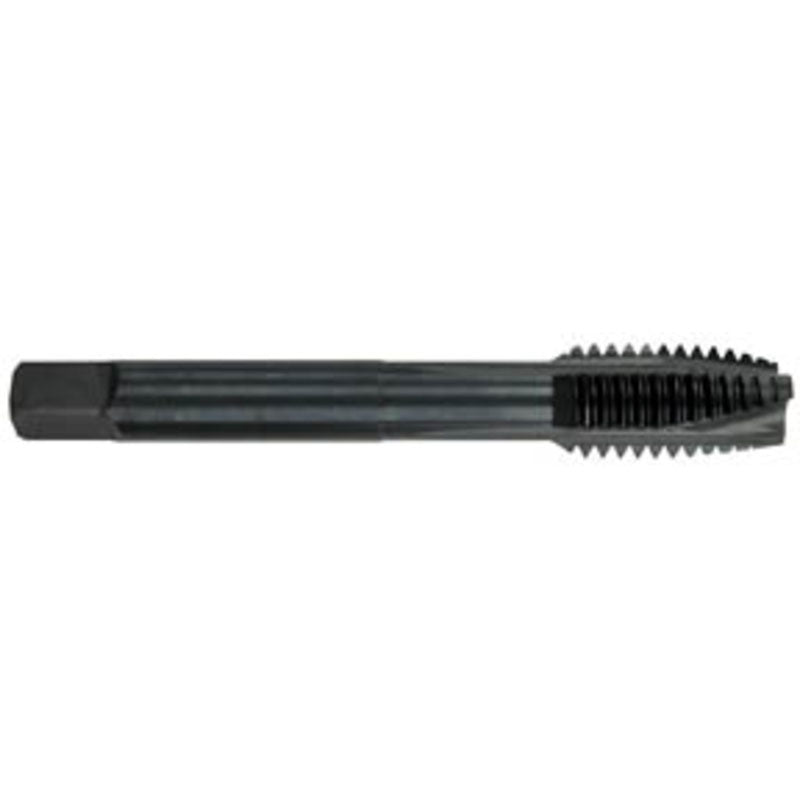

Morse Cutting Tools MT3534544 8-32 Dia. - H7 - HSS - Nitride & Steam Oxide- +.0035 Oversize Spiral Point Tap Series/List #2090

SKU: FTS-MT3534544
MPN: 34544

$11.24
Unit price per
Save $5

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Morse Cutting Tools 34544 8-32 Dia. - H7 - HSS - Nitride & Steam Oxide- +.0035 Oversize Spiral Point Tap Series/List #2090

Full Description

Thread Standard	NC	Tool Type	Production Tap
Thread Size	#8 - 32	Special Feature	ShearTap
Thread Diameter Size (TDZ)	#8	Applicable Material	Steel \| Stainless Steel
Threads per Inch (TPI)	32	Thread Cutting Part Length (THL)	0.380"
Thread Tolerance Class (TCTR)	H7	Flute Type	Straight
Usable Length (LU)	0.380"	End Shape	Spiral Point
Overall Length (OAL)	2-1/8"	Style	Plug
Chamfer	3 to 5 Threads	Cutting Direction (HAND)	Right
Coating	Steam Oxide Over Nitride	Coolant Supply Property (CSP)	External
Flute Count (NOF)	3	Measurement Type	Machine Screw
Cutting Edge Material	HSS	Series/List #	2090
Standard	Oversize

ShearTapô • ShearTapô - for Stainless Steel & Carbon Steel up to 35Rc hardness. • Oversize taps are mainly used for parts that will be plated or heat treated after tapping. Also used in materials that tend to shrink after tapping. • CNC Style enchances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap and the workpiece. • Spiral Point Taps are designed for efficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds. • Steam Oxide over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention.
