Brand: Morse Cutting Tools

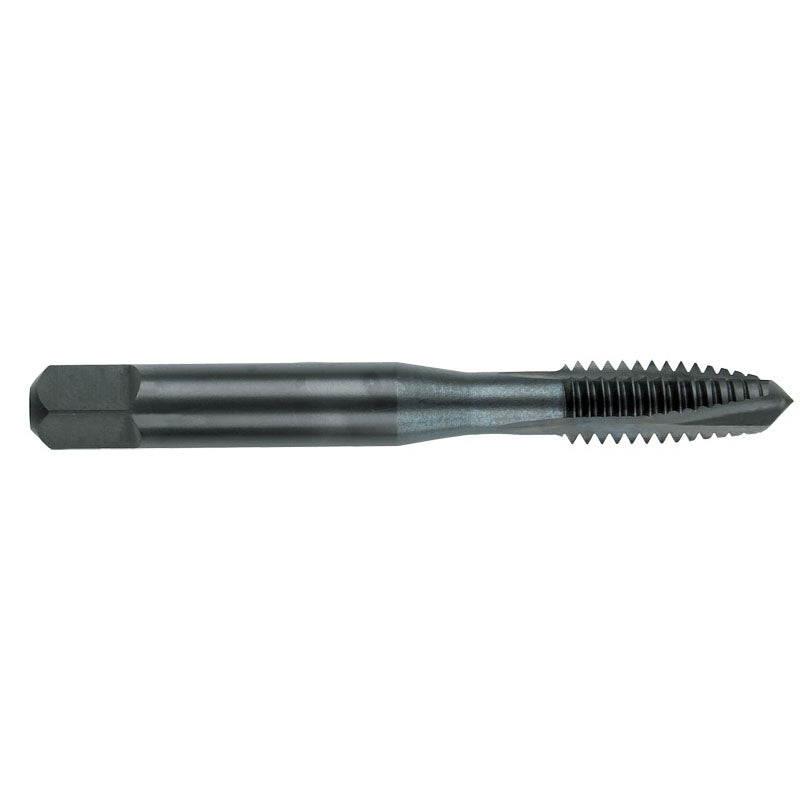

Morse Cutting Tools MT3360845 8-32 Dia. - H3 - 3 FL - Powder Metal - TiCN - Plug - Spiral Point Tap

SKU: FTS-MT3360845
MPN: 60845

$46.59
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Morse Cutting Tools 60845 8-32 Dia. - H3 - 3 FL - Powder Metal - TiCN - Plug - Spiral Point Tap Series/List #2095C

Full Description

Thread Standard	NC	Cutting Edge Material	HSSPM
Thread Size	#8 - 32	Tool Type	High Performance Tap
Thread Diameter Size (TDZ)	#8	Applicable Material	Super-Alloys / Titanium
Threads per Inch (TPI)	32	Thread Cutting Part Length (THL)	3/8"
Thread Tolerance Class (TCTR)	H3	Flute Type	Straight
Usable Length (LU)	3/8"	End Shape	Spiral Point
Overall Length (OAL)	2-1/8"	Style	Plug
Chamfer	Plug	Measurement Type	Machine Screw
Coating	TiCN	Series/List #	2095C
Flute Count (NOF)	3

• HPT†- High Performance Tap - Exotic Alloys • Recommended for steels, steel alloys, stainless steels, titanium alloys, nickel and nickel base alloys, other exotic alloys and wide variety of materials up to 32Rc hardness. • Spiral†Point Taps are designed fo refficient tapping of through holes and blind holes with adequate depth for chip accumulation at the bottom of the hole. The shearing action of the point provides freer cutting action and ejects the chips ahead of the tap, eliminating chip evacuation problems and chip damage to the threads. Shallower flutes also result in greater tap strength, allowing for higher cutting speeds. • Plug†Style (3-5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance. • CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece. • P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity
