Brand: JW Winco

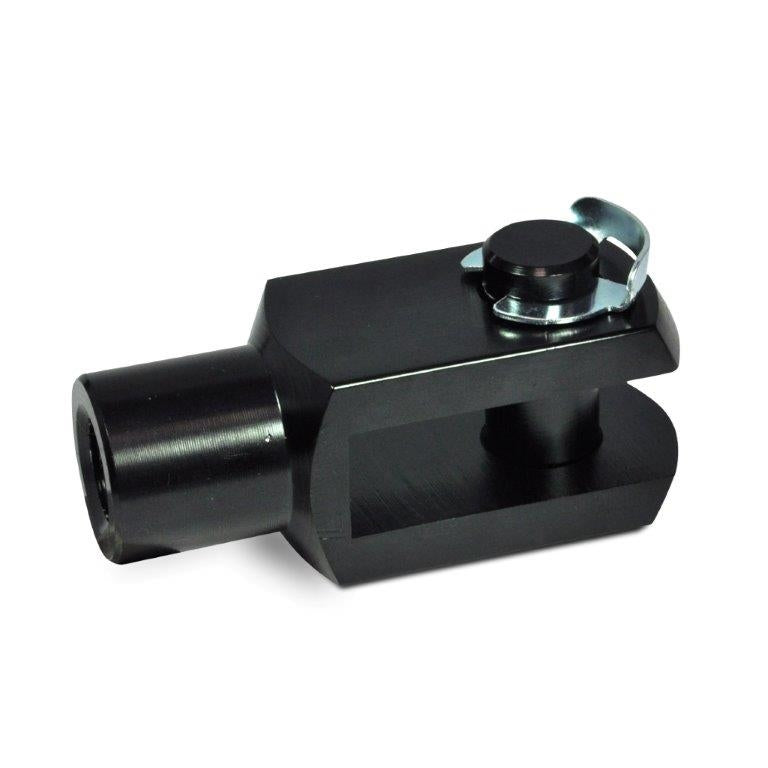

JW WINCO GN751-5-10-M5-KL-AL CLEVIS FORK JOINT
SKU: JW-751-5-10-M5-KL-AL
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN751-5-10-M5-KL-AL CLEVIS FORK JOINTGN 751 Clevis Fork Joints are mainly used with pneumatic or hydraulic cylinders. They consist of a fork head with circlip or a fork pin with snap-on securing collar.
Aluminum Body, Anodized, black Finish
GN 751 Aluminum Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN751-5-10-M5-KL-AL CLEVIS FORK JOINT
GN 751 Clevis Fork Joints are mainly used with pneumatic or hydraulic cylinders. They consist of a fork head with circlip or a fork pin with snap-on securing collar.
Body: Aluminum
Finish: Anodized, black
Type: Side Mount Ring
Bore Dia.: 5 mm
Thread Dia.: M5
Overall Width: 10 mm
Overall Height: 26 mm
Fork Opening Width: 5 mm
Fork Center Length: 10 mm
Base Dia.: 9 mm
Base Height: 7.5 mm
