Brand: JW Winco

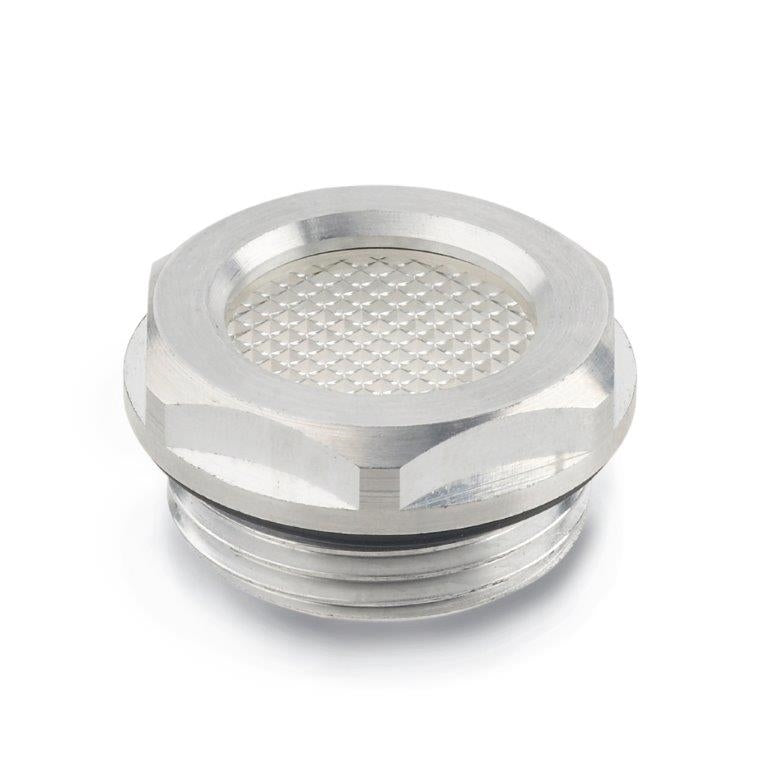

JW WINCO GN744-24-G1-A OIL LEVEL SIGHT GLASS ALUMINUM, PLASTIC PRISMATIC GLASS
SKU: JW-744-24-G1-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN744-24-G1-A OIL LEVEL SIGHT GLASS ALUMINUM, PLASTIC PRISMATIC GLASSGN 744 fluid level sight glasses with prismatic reflector expand the range and usage of oil level sight glasses. With the cats-eye prism effect on the oil color, oil viscosity not-with-standing, the view is quite clear. The real advantage of the prism effect is when over-filling, under-filling and poor lighting situations arise. Should not be used in applications where viewing of alcohol level is required. Fluid level sight glasses can also be used on pressurized tanks. Maximum heat resistance 100°C (212°F).
Aluminum Body, Transparent Plastic Sight Glass
Nitrile Rubber Seal
GN 744 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN744-24-G1-A OIL LEVEL SIGHT GLASS ALUMINUM, PLASTIC PRISMATIC GLASS
GN 744 fluid level sight glasses with prismatic reflector expand the range and usage of oil level sight glasses. With the cats-eye prism effect on the oil color, oil viscosity not-with-standing, the view is quite clear. The real advantage of the prism effect is when over-filling, under-filling and poor lighting situations arise. Should not be used in applications where viewing of alcohol level is required. Fluid level sight glasses can also be used on pressurized tanks. Maximum heat resistance 100°C (212°F).
Body: Aluminum
Sight Glass: Transparent Plastic
Seal: Nitrile Rubber
Window Dia.: 0.94"
Thread: G1
Overall Dia.: 1.57"
Thread Length: 0.43"
Head Height: 0.33"
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
