Brand: JW Winco

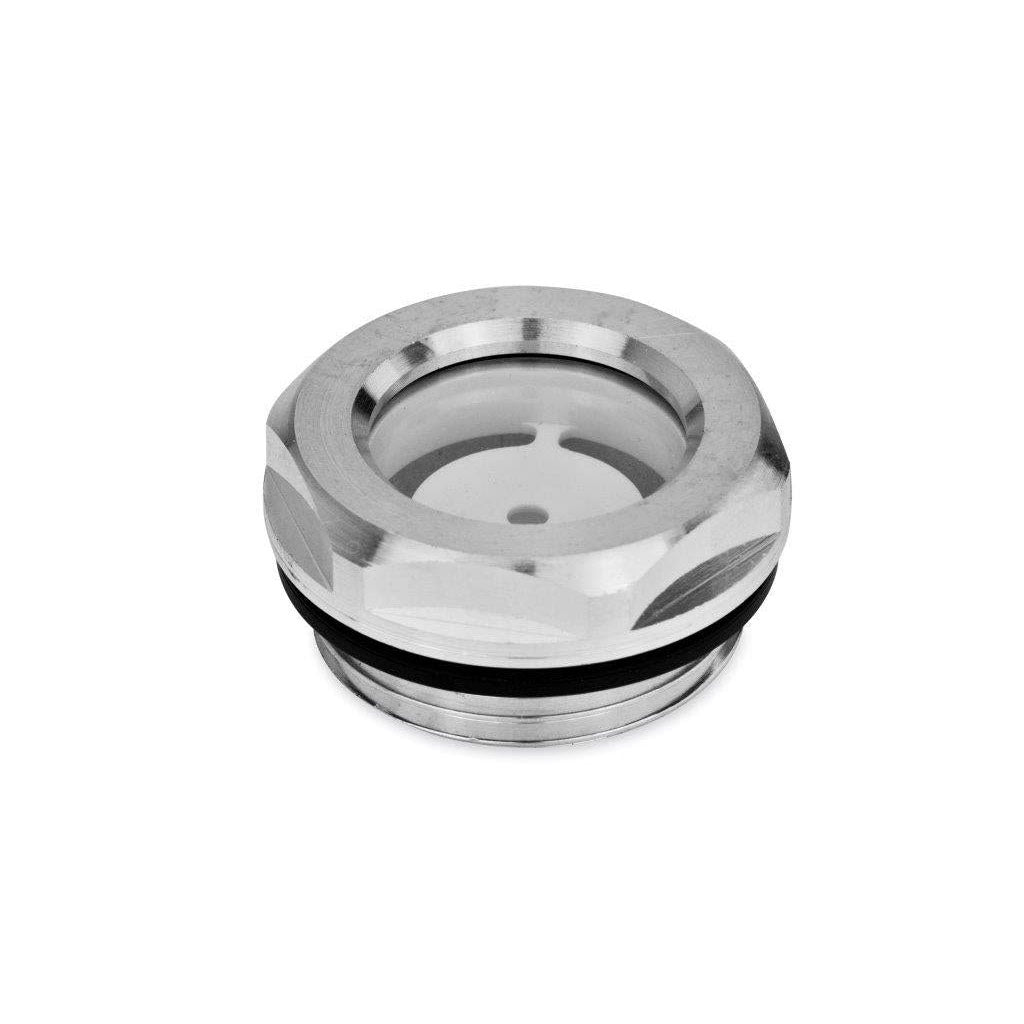

JW WINCO 743-32-G11/4-A GN743-32-G1-1/4-A HEAT RESISTANT OIL SIGHT GLASS ALUMINUM W/REFLECTOR
SKU: JW-743-32-G11/4-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO 743-32-G11/4-A GN743-32-G1-1/4-A HEAT RESISTANT OIL SIGHT GLASS ALUMINUM W/REFLECTORGN 743 Fluid level sight glasses feature genuine glass of high stability and scratch proof, sealing with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures. The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal allows also the softer elastomer which guarantees better and easier sealing.
Aluminum Body, Natural Glass Sight Glass
NBR Rubber Seal with Technopolymer Reflector
GN 743 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO 743-32-G11/4-A GN743-32-G1-1/4-A HEAT RESISTANT OIL SIGHT GLASS ALUMINUM W/REFLECTOR
GN 743 Fluid level sight glasses feature genuine glass of high stability and scratch proof, sealing with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures. The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal allows also the softer elastomer which guarantees better and easier sealing.
Body: Aluminum
Sight Glass: Natural Glass
Seal: NBR Rubber
Reflector: Technopolymer
Window Dia.: 1.26"
Thread: G1-1/4
Overall Dia.: 1.97"
Thread Length: 0.47"
Head Height: 0.35"
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
