Brand: JW Winco

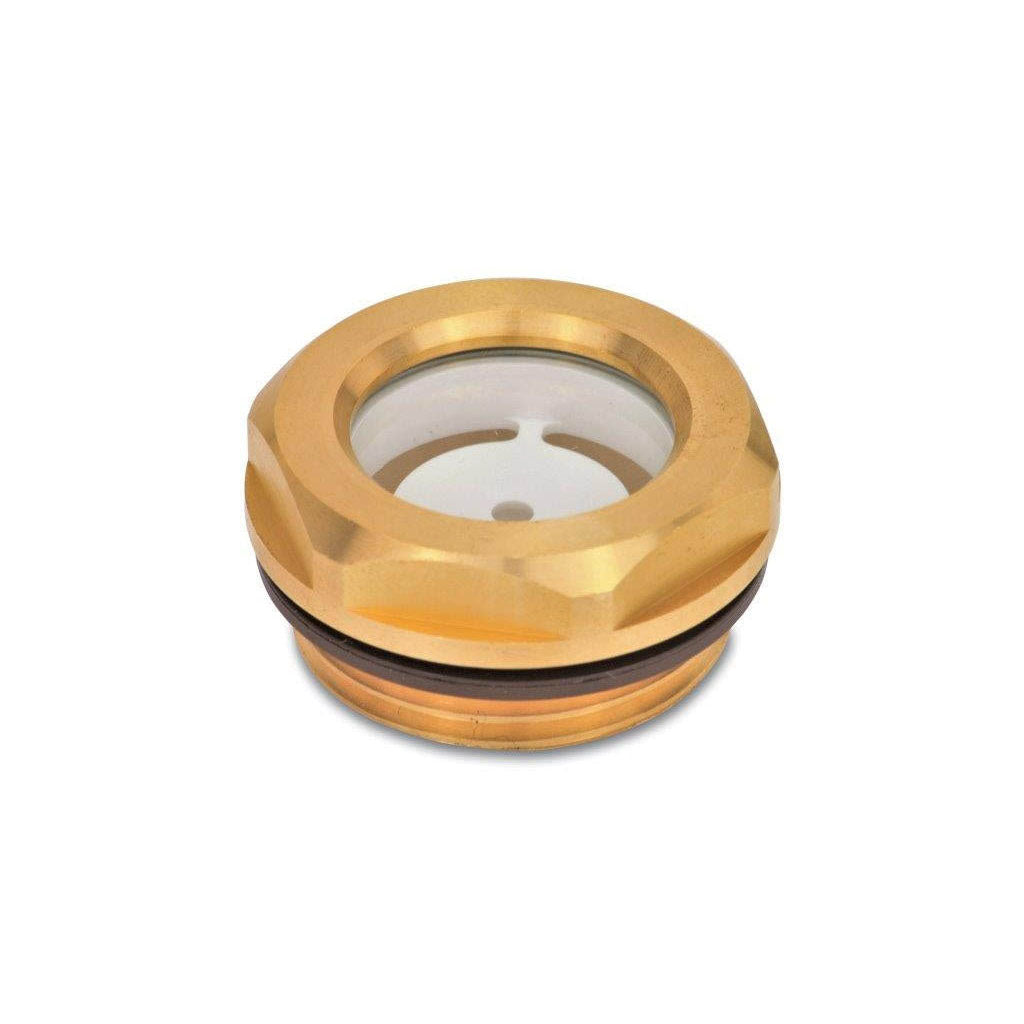

JW WINCO 743.3-14-M20X1.5-A GN743.3-14-M20-1.5-A OIL SIGHT GLASS BRASS ESG GLASS W/REFLECTOR
SKU: JW-743.3-14-M20X1.5-A
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO 743.3-14-M20X1.5-A GN743.3-14-M20-1.5-A OIL SIGHT GLASS BRASS ESG GLASS W/REFLECTORGN 743.3 Fluid level sight glasses feature genuine ESG glass of high stability and scratch proof, sealing with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures. Seal is housed in a groove and therefore cannot be lost. Meanwhile, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal also allows the use of a softer Elastomer, which guarantees better and easier sealing. GN 743.3 Fluid level sight glasses can be used on pressurized oil tanks. Tests regarding maximum pressure are available upon request. Also, these oil level site glasses are suitable for applications with subpressure. Maximum heat resistance 180°C (356°F).
Brass Body, ESG glass Sight Glass
FPM Rubber Seal with Technopolymer Reflector
GN 743.3 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO 743.3-14-M20X1.5-A GN743.3-14-M20-1.5-A OIL SIGHT GLASS BRASS ESG GLASS W/REFLECTOR
GN 743.3 Fluid level sight glasses feature genuine ESG glass of high stability and scratch proof, sealing with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures. Seal is housed in a groove and therefore cannot be lost. Meanwhile, this groove prevents the seal from being extruded when the sight glass is tightened. The location of this seal also allows the use of a softer Elastomer, which guarantees better and easier sealing. GN 743.3 Fluid level sight glasses can be used on pressurized oil tanks. Tests regarding maximum pressure are available upon request. Also, these oil level site glasses are suitable for applications with subpressure. Maximum heat resistance 180°C (356°F).
Body: Brass
Sight Glass: ESG glass
Seal: FPM Rubber
Reflector: Technopolymer
Window Dia.: 0.55"
Thread: M20
Overall Dia.: 1.02"
Thread Length: 0.33"
Head Height: 0.30"
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
