Brand: Morse Cutting Tools

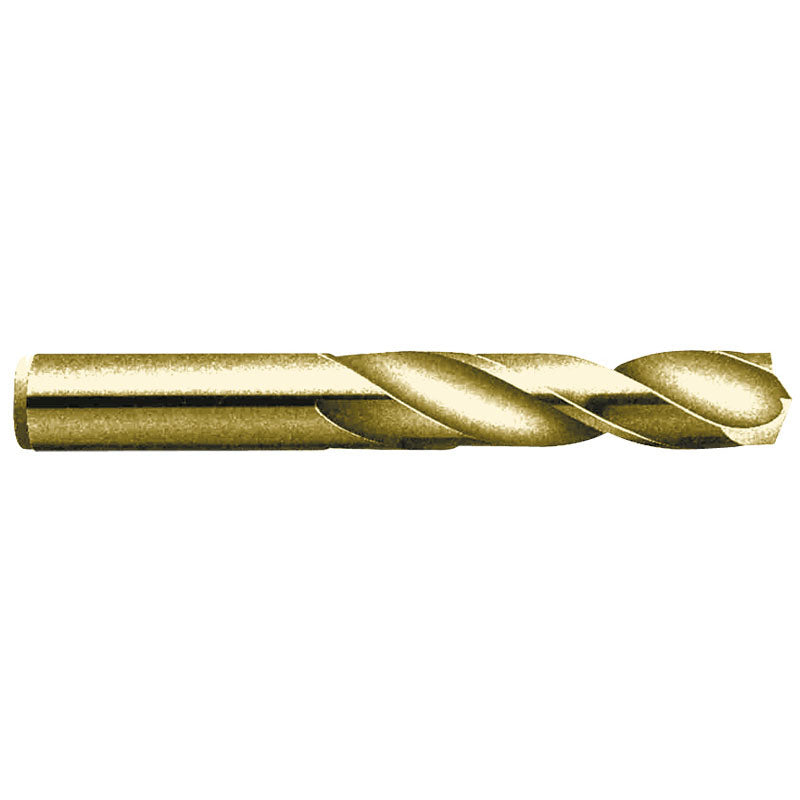

Morse Cutting Tools MT1513217 2435 7/32 HD/SM DRL COB "

SKU: FTS-MT1513217
MPN: 13217

$3.24
Unit price per
Save $2.15

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Morse Cutting Tools 95001753-270 2435 7/32 HD/SM DRL COB "

Full Description

Measurement Type	Inch	Flute Length	1-1/4"
Drill Bit Size / Cutting Diameter (DC)	7/32"	Flute Type	Standard
Drill Bit Size / Cutting Diameter (DC) - Inch	7/32"	Overall Length (OAL)	2-3/8"
Decimal Equivalent	0.2188	Shank Type	Round
Angle	135 Degrees	Style	Heavy Duty
Shape	Screw Machine	Point Shape	Split Point
Coating	Black Oxide	Connection Diameter Machine Side (DCONMS)	7/32"
Cutting Depth	1-1/4"	Series/List #	2435
Cutting Edge Material	HSSCo

Cobalt Screw Machine Length Drills • Heavy duty construction • 135 self-centering split point eliminates walking and reduces thrust • Short length provides maximum rigidity for increased hole accuracy and extended tool life • Cobalt steel offers increased hardness, toughness, wear resistance and heat resistance • Recommended for drilling tough, high tensile strength materials and materials that generate higher cutting temperatures including high alloy steels, ferrous castings, titanium, inconel, stainless steels and other difficult-to-drill materials
