Brand: JW Winco

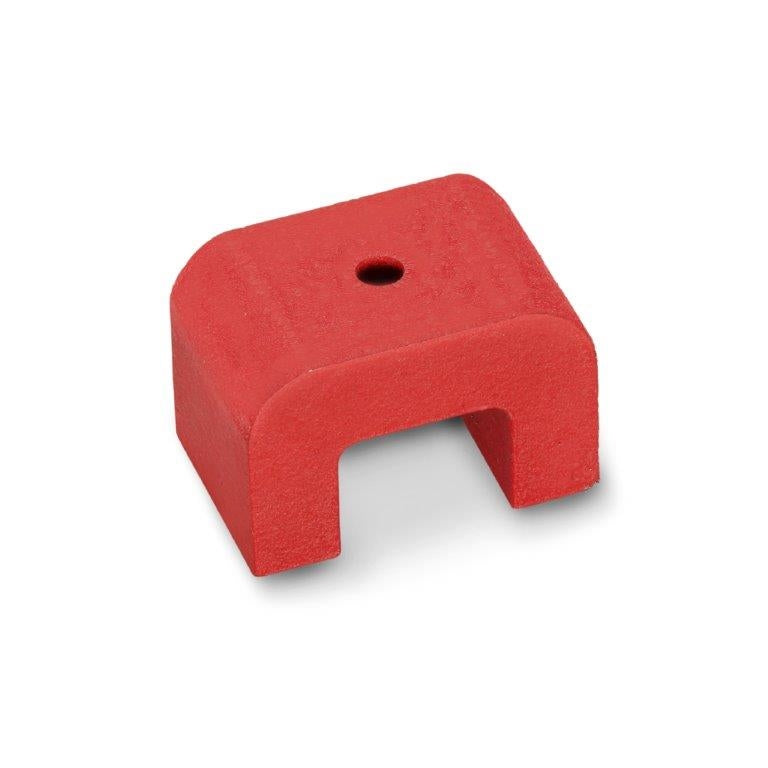

JW WINCO GN62-AN-39 U-MAGNET W/BORE TYPE AN
SKU: JW-62-AN-39
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN62-AN-39 U-MAGNET W/BORE TYPE ANGN 62 U-Shaped magnets have a split magnetic surface. These are non-shielded magnetic systems produced by casting. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material. For easier handling and/or to avoid demagnetization, these magnets have an iron plate on their magnetic surface.
AlNiCo (Aluminum, nickel, cobalt) Magnet Material, Steel Body with Red lacquered Finish
GN 62 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN62-AN-39 U-MAGNET W/BORE TYPE AN
GN 62 U-Shaped magnets have a split magnetic surface. These are non-shielded magnetic systems produced by casting. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material. For easier handling and/or to avoid demagnetization, these magnets have an iron plate on their magnetic surface.
Magnet Material: AlNiCo (Aluminum, nickel, cobalt)
Body: Steel
Finish: Red lacquered
Temperature Resistant: 176° F
Magnet Length: 39 mm
Magnet Width: 25.4 mm
Thru Hole Dia.: 4.7 mm
Magnet Height: 25 mm
Inner Height: 14 mm
Inner Width: 19 mm
Nominal Magnetic Force: 90 N
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
