Brand: JW Winco

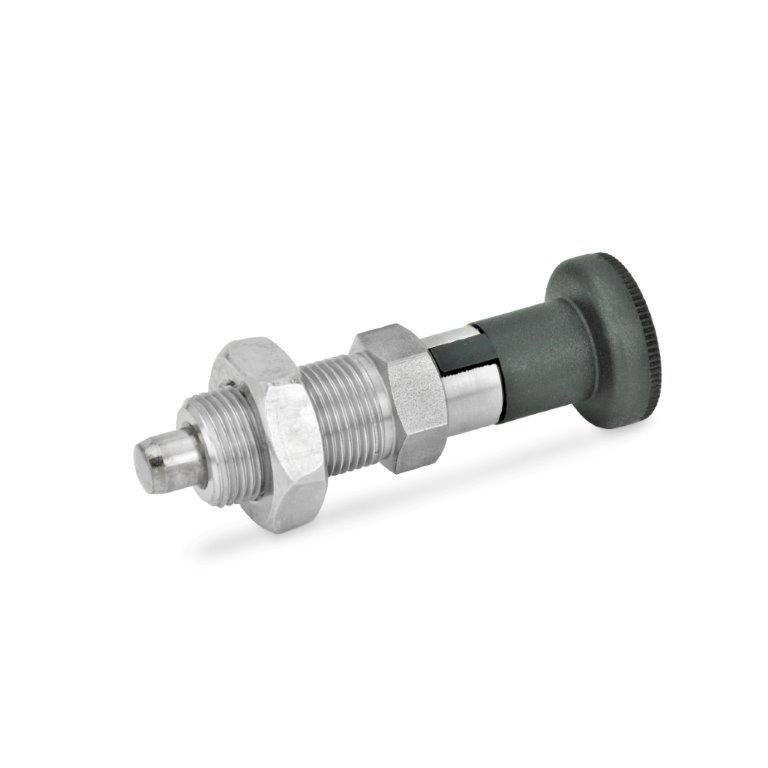

JW WINCO GN617.1-5-M10X1-AK-NI INDEXING PLUNGER - 617.1-5-M10X1-AK-NI
SKU: JW-617.1-5-M10X1-AK-NI
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN617.1-5-M10X1-AK-NI INDEXING PLUNGER - 617.1-5-M10X1-AK-NIGN 617.1 indexing plungers in stainless steel with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted.
Body: Steel
Knob: Nylon Plastic
Plunger Pin: Steel
Lock Nut: Steel
Thread Type: Metric
Thread: M10
GN617.1 Standard Sheet
Stainless Steel Material Charcteristics
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN617.1-5-M10X1-AK-NI INDEXING PLUNGER - 617.1-5-M10X1-AK-NI
GN 617.1 indexing plungers in stainless steel with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted.
Body: Steel
Knob: Nylon Plastic
Plunger Pin: Steel
Lock Nut: Steel
Thread Type: Metric
Thread: M10
Plunger Dia.: 5 mm
Plunger Length: 5 mm
Knob Diameter: 21 mm
Length: 51 mm
Initial Load: 6 N
End Load: 15 N
