Brand: JW Winco

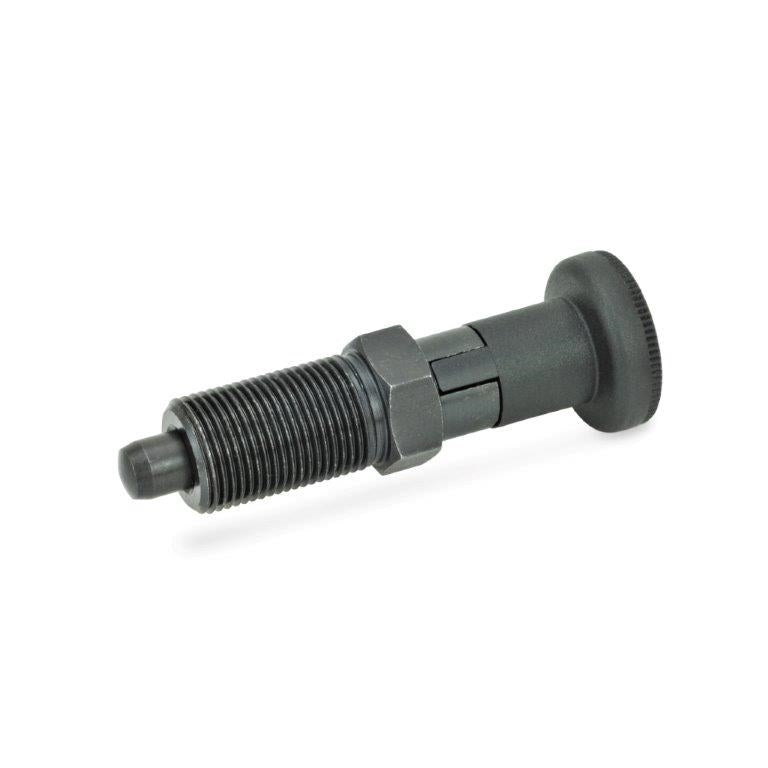

JW WINCO GN617.1-10-M20X1.5-A INDEXING PLUNGER - 617.1-10-M20X1.5-A
SKU: JW-617.1-10-M20X1.5-A
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN617.1-10-M20X1.5-A INDEXING PLUNGER - 617.1-10-M20X1.5-AGN 617.1 indexing plungers with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted.
Body: Steel
Knob: Plastic
Plunger Pin: Steel
Locking: Lock-Out
Lock Nut: none
Thread Type: Metric
Thread: M20
GN617.1 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN617.1-10-M20X1.5-A INDEXING PLUNGER - 617.1-10-M20X1.5-A
GN 617.1 indexing plungers with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted.
Body: Steel
Knob: Plastic
Plunger Pin: Steel
Locking: Lock-Out
Lock Nut: none
Thread Type: Metric
Thread: M20
Plunger Dia.: 10 mm
Plunger Length: 10 mm
Knob Diameter: 31 mm
Length: 91 mm
Initial Load: 19 N
End Load: 45 N
