Brand: JW Winco

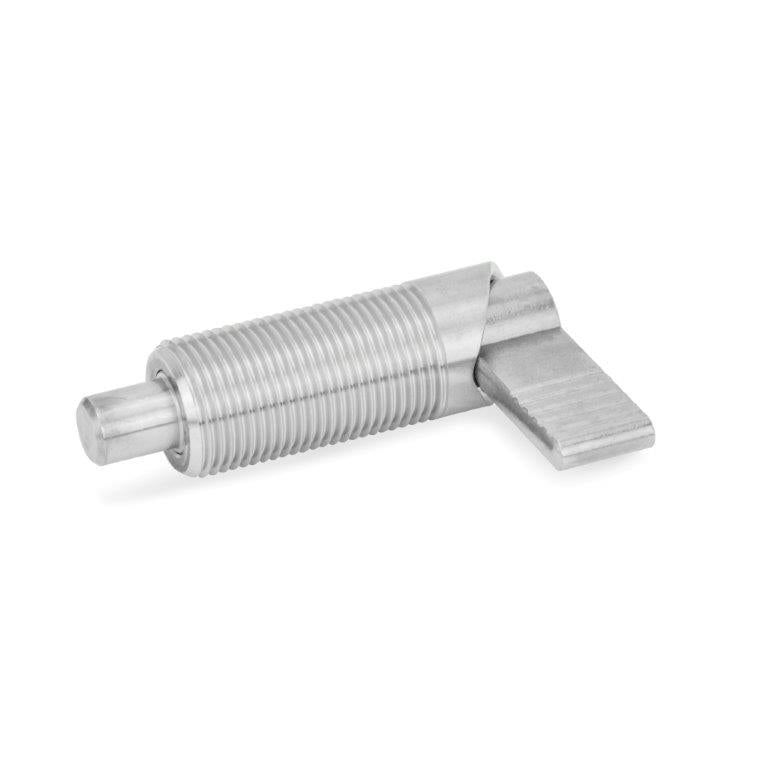

JW WINCO GN612-12-M20X1.5-AK-NI INDEXING PLUNGER - 612-12-M20X1.5-AK-NI

SKU: JW-612-12-M20X1.5-AK-NI
MPN: 612-12-M20X1.5-AK-NI

$41.54
Unit price per
Save $0.21

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

JW WINCO GN612-12-M20X1.5-AK-NI INDEXING PLUNGER - 612-12-M20X1.5-AK-NI
GN 612 cam action indexing plungers are best utilized when the pin needs to be retracted. A groove exists so the plunger can be held in both positions. The plastic ribbed sleeve offers an aesthetically pleasing and comfortable finger grip.
Body: Stainless Steel
Arm: Stainless Steel
Arm Finish: Matte
Plunger Pin: Stainless Steel
GN612 Standard Sheet
Stainless Steel Material Charcteristics

*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

JW WINCO GN612-12-M20X1.5-AK-NI INDEXING PLUNGER - 612-12-M20X1.5-AK-NI

GN 612 cam action indexing plungers are best utilized when the pin needs to be retracted. A groove exists so the plunger can be held in both positions. The plastic ribbed sleeve offers an aesthetically pleasing and comfortable finger grip.

Body: Stainless Steel

Arm: Stainless Steel

Arm Finish: Matte

Plunger Pin: Stainless Steel

Lock Nut: Stainless Steel

Locking: Lock-Out

Thread Type: Metric

Thread: M20

Plunger Dia.: 12 mm

Plunger Length: 12 mm

Overall Length: 69 mm

Arm Length: 37 mm

Initial Load: 21 N

End Load: 57 N

GN612 Standard Sheet

Stainless Steel Material Charcteristics

*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
