Brand: JW Winco

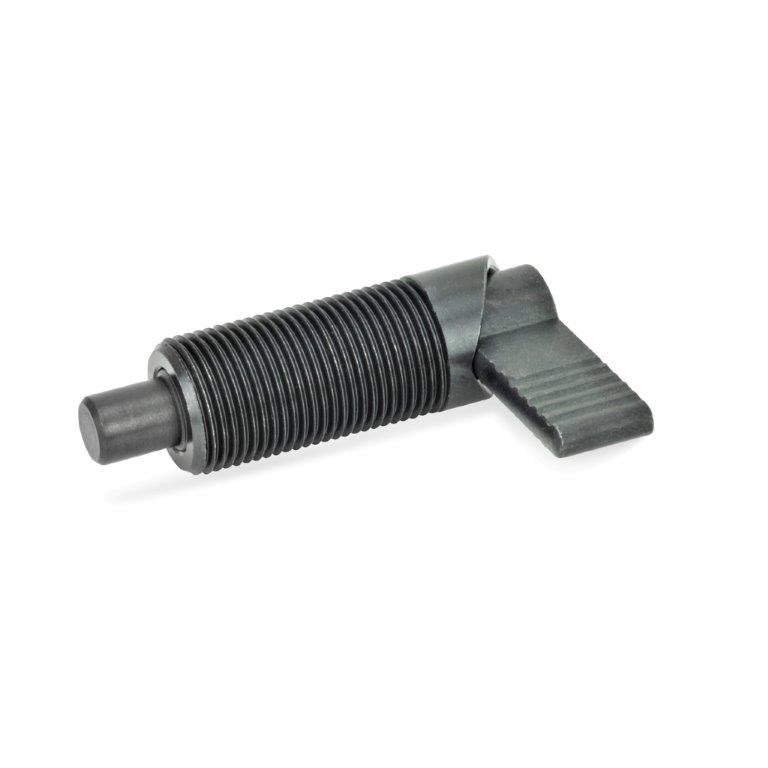

JW WINCO GN612-10-M20X1.5-A INDEXING PLUNGER - 612-10-M20X1.5-A

SKU: JW-612-10-M20X1.5-A
MPN: 612-10-M20X1.5-A

$24.06
Unit price per
Save $0.13

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

JW WINCO GN612-10-M20X1.5-A INDEXING PLUNGER - 612-10-M20X1.5-A
GN 612 cam action indexing plungers are best utilized when the pin needs to be retracted.A groove exists so the plunger can be held in both positions.
Body: Steel
Arm: Steel
Arm Finish: Black Oxide
Plunger Pin: Steel
GN612 Standard Sheet

*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

JW WINCO GN612-10-M20X1.5-A INDEXING PLUNGER - 612-10-M20X1.5-A

GN 612 cam action indexing plungers are best utilized when the pin needs to be retracted.A groove exists so the plunger can be held in both positions.

Body: Steel

Arm: Steel

Arm Finish: Black Oxide

Plunger Pin: Steel

Lock Nut: none

Locking: Lock-Out

Thread Type: Metric

Thread: M20

Plunger Dia.: 10 mm

Plunger Length: 12 mm

Overall Length: 69 mm

Arm Length: 37 mm

Initial Load: 21 N

End Load: 57 N

GN612 Standard Sheet
