Brand: JW Winco

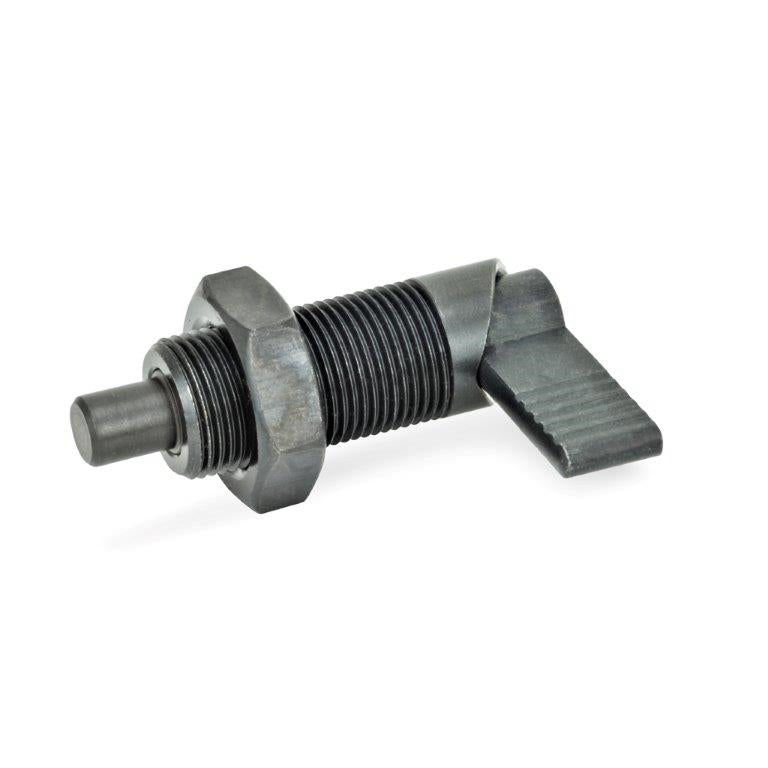

JW WINCO GN612-10-M20-AK INDEXING PLUNGER CAM - 612-10-M20-AK
SKU: JW-612-10-M20-AK
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN612-10-M20-AK INDEXING PLUNGER CAM - 612-10-M20-AKGN 612 cam action indexing plungers are best utilized when the pin needs to be retracted.A groove exists so the plunger can be held in both positions.
Body: Steel
Arm: Steel
Arm Finish: Black Oxide
Plunger Pin: Steel
GN612 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN612-10-M20-AK INDEXING PLUNGER CAM - 612-10-M20-AK
GN 612 cam action indexing plungers are best utilized when the pin needs to be retracted.A groove exists so the plunger can be held in both positions.
Body: Steel
Arm: Steel
Arm Finish: Black Oxide
Plunger Pin: Steel
Lock Nut: Steel
Locking: Lock-Out
Thread Type: Metric
Thread: M20
Plunger Dia.: 10 mm
Plunger Length: 12 mm
Overall Length: 67 mm
Arm Length: 37 mm
Initial Load: 21 N
End Load: 57 N
