Brand: JW Winco

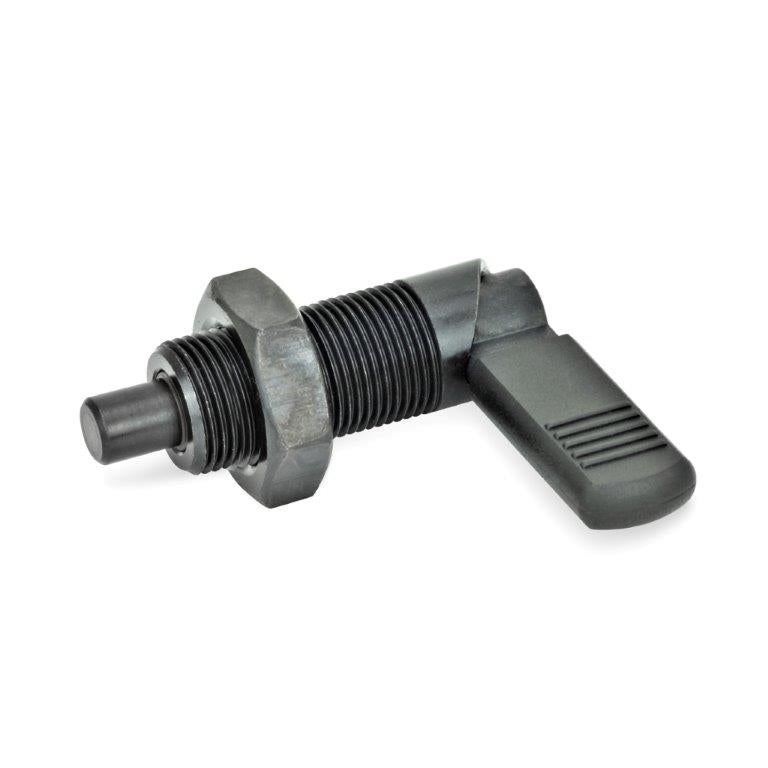

JW WINCO GN612-10-M16X1.5-BK INDEXING PLUNGER - 612-10-M16X1.5-BK
SKU: JW-612-10-M16X1.5-BK
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO GN612-10-M16X1.5-BK INDEXING PLUNGER - 612-10-M16X1.5-BKGN 612 cam action indexing plungers are best utilized when the pin needs to be retracted.A groove exists so the plunger can be held in both positions.
Body: Steel
Arm: Steel
Arm Finish: Plastic Cover
Plunger Pin: Steel
GN612 Standard Sheet
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO GN612-10-M16X1.5-BK INDEXING PLUNGER - 612-10-M16X1.5-BK
GN 612 cam action indexing plungers are best utilized when the pin needs to be retracted.A groove exists so the plunger can be held in both positions.
Body: Steel
Arm: Steel
Arm Finish: Plastic Cover
Plunger Pin: Steel
Lock Nut: Steel
Locking: Lock-Out
Thread Type: Metric
Thread: M16
Plunger Dia.: 10 mm
Plunger Length: 10 mm
Overall Length: 56 mm
Arm Length: 42 mm
Initial Load: 11 N
End Load: 29 N
