Brand: Mitee-Bite

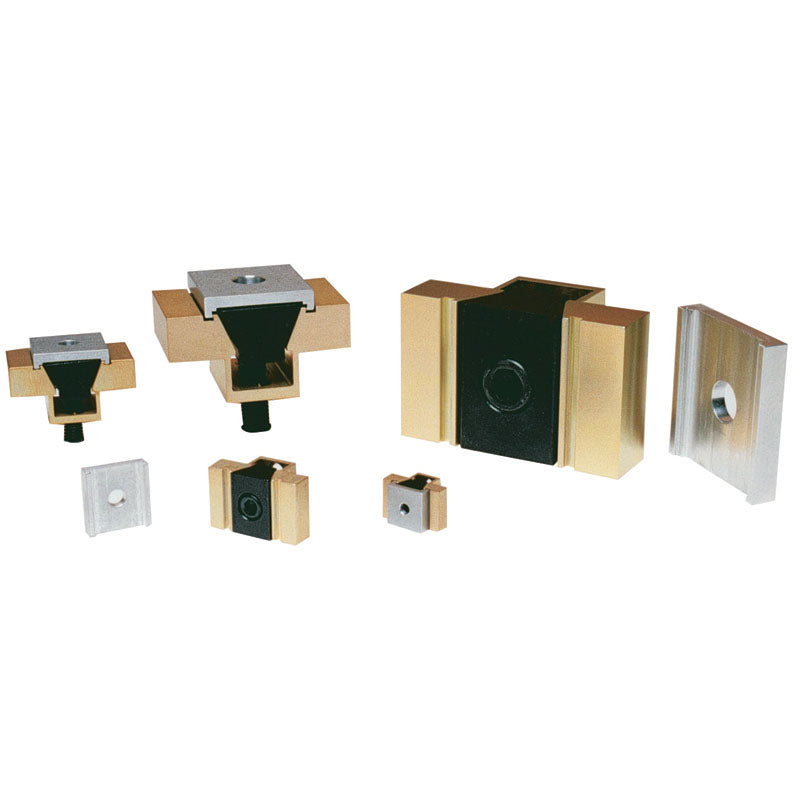

Mitee-Bite SG7060050 MODEL 500 UNIFORCE CLAMP
SKU: FTS-SG7060050
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Mitee-Bite 60050 MODEL 500 UNIFORCE CLAMPFull Description
| Type | Uniforce Clamp | Includes | 1 Clamp Assembly with Locking Plate |
| Thread Size | #8-32 | Clamp Length | .620" |
| Overall Length | .620" | Outer Edge Screw | #2-56 |
| Overall Width | 1.125" | Style | Inch |
| Model No | 60050 | Contact Depth | 0.250" |
| Clamp Height | 1/2" | Machineable Stock | 0.180" |
| Base Width | .420" | Centerline Distance | .400" |
| Holding Force | 500 lbs |
• This compact method of workholding will allow more parts per load at a lower price than vise soft jaws • The compact Mitee-Bite Uniforce Clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece • The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel • A unique locking plate is provided to make the clamp rigid while machining the jaws to your specifications, without vibration.
