Brand: JW Winco

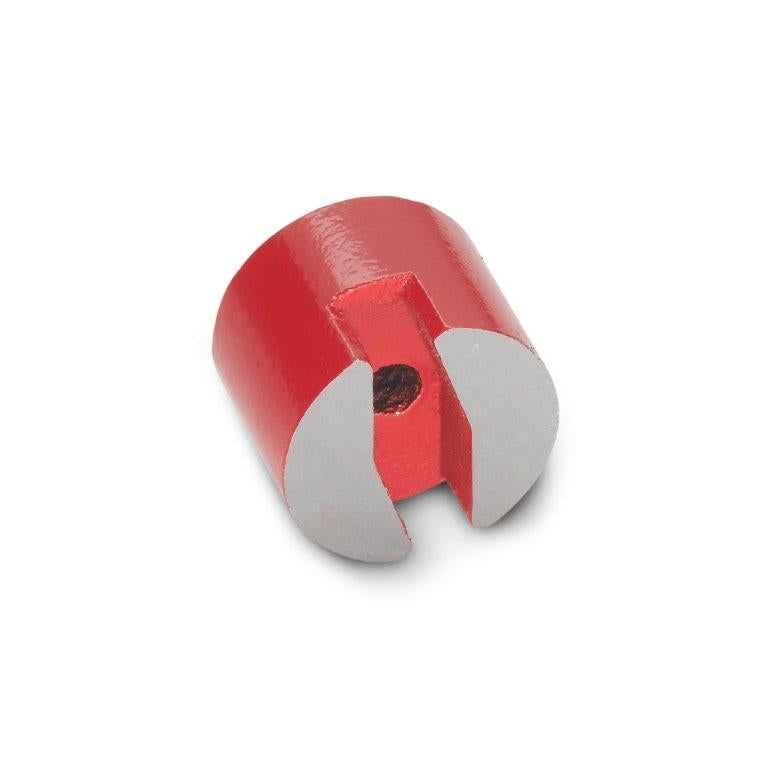

JW WINCO GN60-AN-25 BUTTON-TYPE MAGNET TYPE AN
SKU: JW-60-AN-25
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
Short Description
JW WINCO GN60-AN-25 BUTTON-TYPE MAGNET TYPE ANGN 60 magnets have a split magnetic surface. These are non-shielded magnetic systems produced by casting. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material. For easier handling and/or to avoid demagnetization, these magnets have an iron plate on their magnetic surface.
AlNiCo (Aluminum, nickel, cobalt) Magnet Material, Steel Body with Red lacquered Finish
GN 60 Standard Sheet
Full Description
JW WINCO GN60-AN-25 BUTTON-TYPE MAGNET TYPE AN
GN 60 magnets have a split magnetic surface. These are non-shielded magnetic systems produced by casting. To ensure that the magnetic forces are not impaired, the mounting screws must be made of non-magnetic material. For easier handling and/or to avoid demagnetization, these magnets have an iron plate on their magnetic surface.
Magnet Material: AlNiCo (Aluminum, nickel, cobalt)
Body: Steel
Finish: Red lacquered
Temperature Resistant: 176° F
Magnet Dia.: 25.4 mm
Bore Dia.: 4.5 mm
Screw Head Dia.: 8.5 mm
Magnet Height: 20 mm
Split Width: 5.6 mm
Split Depth: 8 mm
Nominal Magnetic Force: 29 N
