Brand: Royal Products

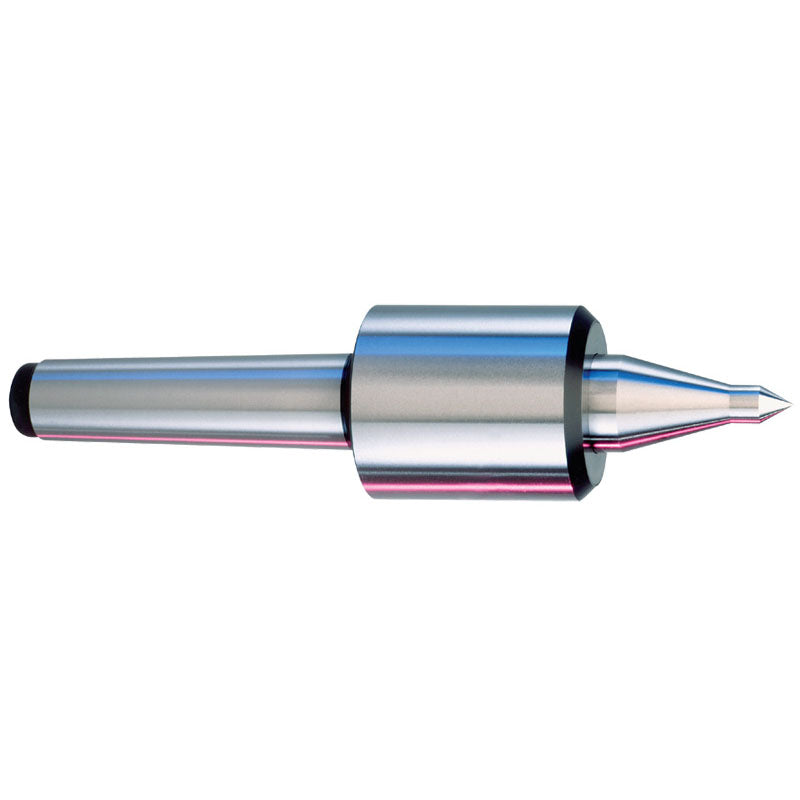

Royal Products HK2610665 Live Centers - #5 MT Quad Bearing CNC
SKU: FTS-HK2610665
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Royal Products 10665 Live Centers - #5 MT Quad Bearing CNCFull Description
| Type | Live Center | Accuracy | 0.0001" |
| Taper Type | Morse Taper | Model No | 10665 |
| Point Style | CNC | Head Length | 2.780" |
| Head Diameter | 2.45" | Point Length | 2.35" |
| Maximum RPM | 5,000 | Tip Diameter | 0.500" |
| Mount | 5 MT | Style | Quad Bearing |
| Point Diameter | 1.250" | Radial Load | 1,230 lbs |
| Thrust Load | 2,150 lbs |
• High-Precision Quad-Bearing Live Centers • Great for grinding and tight tolerance turning. • 0.00005" TIR guaranteed. • Three precision angular contact bearings are secured to the point with a locknut to form a rigid, preloaded assembly. • The point extends into the body where it is supported by a needle roller bearing, which further increases rigidity, reduces point deflection, and dampens vibration. • Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids. • Low profile head provides excellent tool clearance. • Body and point are hardened for strength and durability.
