Brand: Jergens Manufacturing

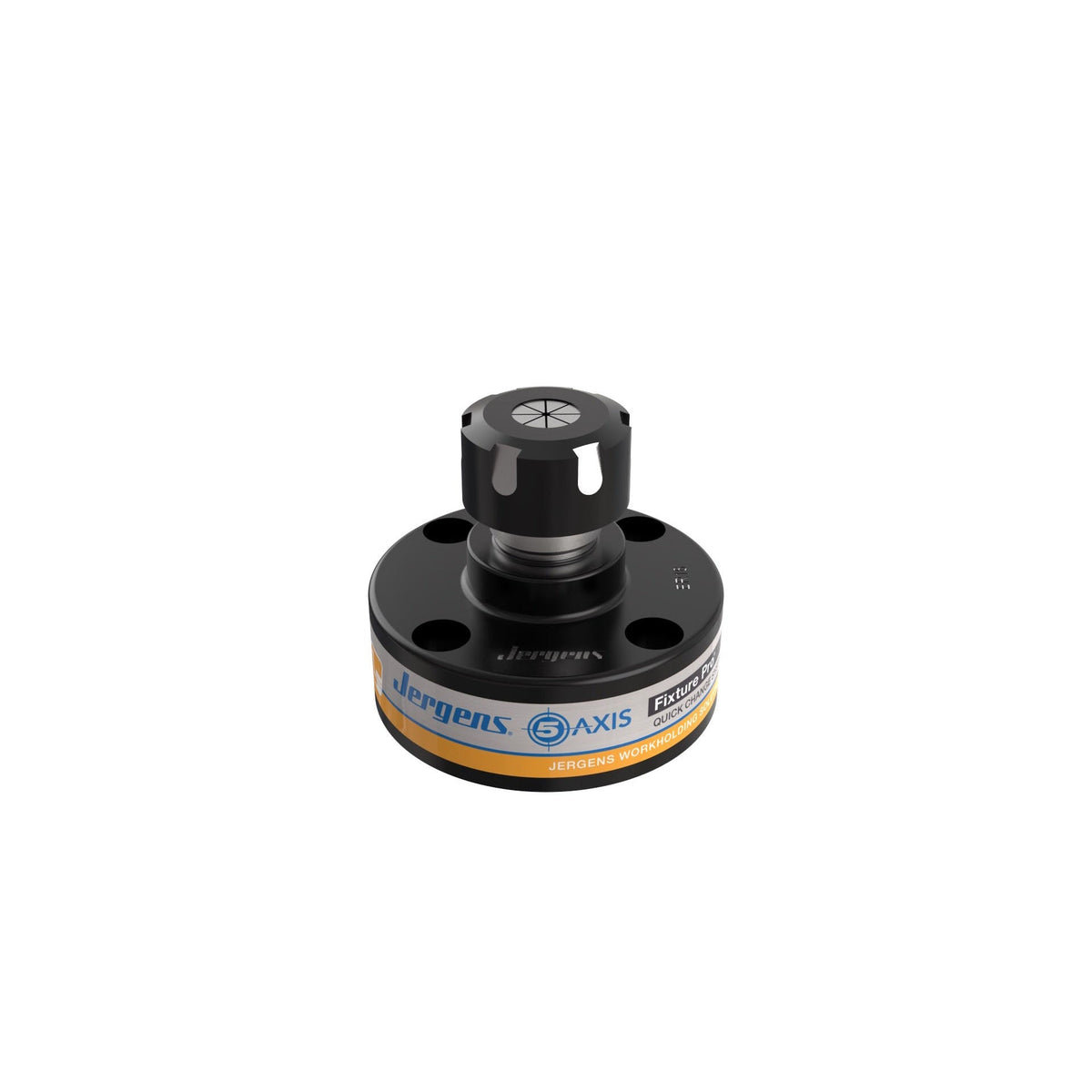

JERGENS ER 25 COLLET FIXTURE ASSEMBLY, 5 AXIS, 130MM RND BASE, UNIVERSAL MOUNTING, 77MM TALL - 5ER13001
SKU: JG-5ER13001
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Jergens product orders*
Short Description
JERGENS ER 25 COLLET FIXTURE ASSEMBLY, 5 AXIS, 130MM RND BASE, UNIVERSAL MOUNTING, 77MM TALL - 5ER13001Category: 5-Axis ER Collet Fixtures
Product Code: F109-2-CA
*All Jergens orders must meet a $75 minimum*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JERGENS ER 25 COLLET FIXTURE ASSEMBLY, 5 AXIS, 130MM RND BASE, UNIVERSAL MOUNTING, 77MM TALL - 5ER13001
Category: 5-Axis ER Collet Fixtures
Product Code: F109-2-CA
Category: 4872
Product Code: 111481
| Part Number | Description | Collet Size | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | Wt. lbs.(kg) | Tightening (ft/lbs) over/under 1/16" (2 mm) Collets ID |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5ER13001 | 5-Axis ER Collet Fixtures | 25 | 130 | 77.0 | 30 | 50 | 100 | M12 | 12 | 18 | 20 | 6.3 (2.9) | 77/77 |
