Brand: INDUSTRIAL MAGNETICS

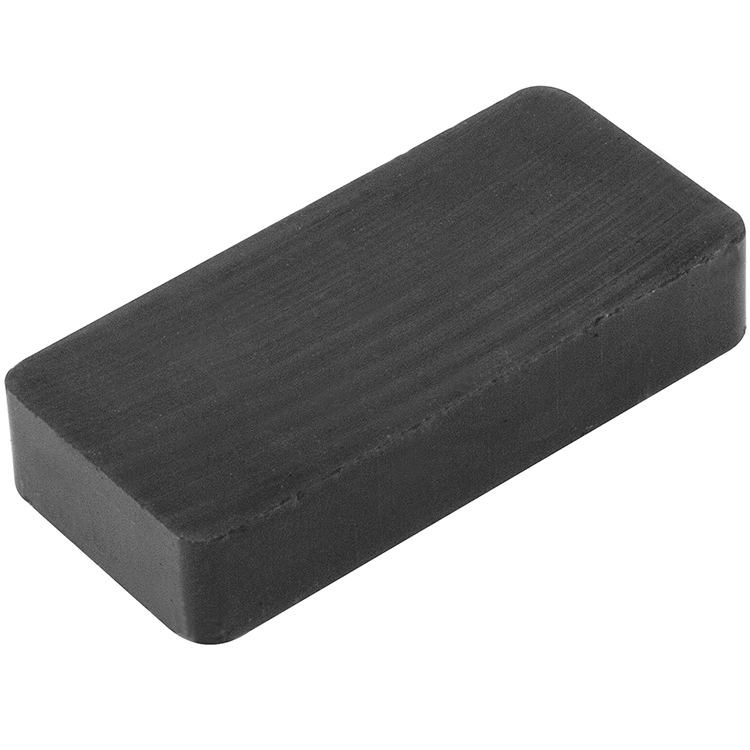

Industrial Magnetics MAG-MATE® Ceramic-8 3/8Th X 7/8 X 1-7/8 5C458
SKU: IM-5C458
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Industrial Magnetics MAG-MATE Ceramic-8 3/8Th X 7/8 X 1-7/8 5C458. Ceramic. Ceramic magnet material is a nonmetallic compound of iron oxide, strontium ferrite and small quantities of other metal oxides.*Industrial Magnetics orders must meet a minimum of $75*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
Industrial Magnetics MAG-MATE® Ceramic-8 3/8Th X 7/8 X 1-7/8 5C458
Ceramic
Ceramic magnet material is a nonmetallic compound of iron oxide, strontium ferrite and small quantities of other metal oxides. The compound is calcined wet ball milled to a fine particle size, binders are added, then the mix is compacted in a press. The compacted shapes are fired at high temperatures in kilns to a closely controlled temperature cycle. Upon cooling, the parts are diamond sawed and diamond wheel ground to specifications.
Low cost, light weight and fairly high energy, Ceramic is a hard, brittle, nonconductive material. It is difficult to grind and cannot be E.M.D.‚¬d, machined or drilled by normal methods. Ceramic is dense black or blue-black in color. It has a thin cross section, is mostly available in slabs or rings and is usually oriented magnetically through its thickness. Ceramic magnet material performs best when temperatures do not exceed 350°F.
Raw magnet material is available in many different types, shapes, sizes and strengths. When selecting magnetic material to perform a given task, certain specifications need to be considered: dimensions, direction of the materials, magnetic orientation, tolerances, finish, strength, and the type of raw magnetic material desired, such as Rare Earth magnets, Ceramic magnets or even Flexible magnetic rubber. Mag-Mate raw magnet material meets Magnetic Materials Producers Association (MMPA) standards for physical quality and magnetic properties.
Literature Download: CeramicCeramic Block Material | |||||
Part Number | Length (in) | Width (in) | Thickness (in) | Weight (lbs) | MgOe |
---|---|---|---|---|---|
5C458 | 1-7/8 | 7/8 | 0.375 | 0.11 | 8 |
187X4X4C5 | 4 | 4 | 0.187 | 4 | 5 |
250X4X6C5 | 6 | 4 | 0.250 | 4 | 5 |
312X4X4C5 | 4 | 4 | 0.312 | 4 | 5 |
375X4X4C5 | 4 | 4 | 0.375 | 4 | 5 |
500X4X6C8 | 6 | 4 | 0.500 | 4 | 8 |
750X4X6C5 | 6 | 4 | 0.750 | 4 | 5 |
1X4X6C8 | 6 | 4 | 1.000 | 4 | 8 |
Ceramic Disc Material | ||||
Part Number | Diameter (in) | Thickness (in) | Weight (lbs) | MgOe |
---|---|---|---|---|
7/8DIAX1C5 | 0.875" | 1" | 0.11 | 5 |
Ceramic Ring Material | |||||
Part No. | O.D. (in) | I.D. (in) | Thick (in) | Weight (lbs) | MgOe |
---|---|---|---|---|---|
F1409 | 0.750 | 0.271 | 0.250 | 0.022 | 1 |
F1407 | 1.230 | 0.885 | 0.431 | 0.044 | 1 |
F1405 | 1.723 | 0.705 | 0.250 | 0.082 | 1 |
710006 | 2.800 | 1.203 | 0.590 | 0.466 | 5 |
431005 | 2.875 | 0.875 | 0.250 | 0.600 | 5 |
455005 | 5.250 | 2.312 | 0.750 | 2.408 | 5 |
