Brand: ETM

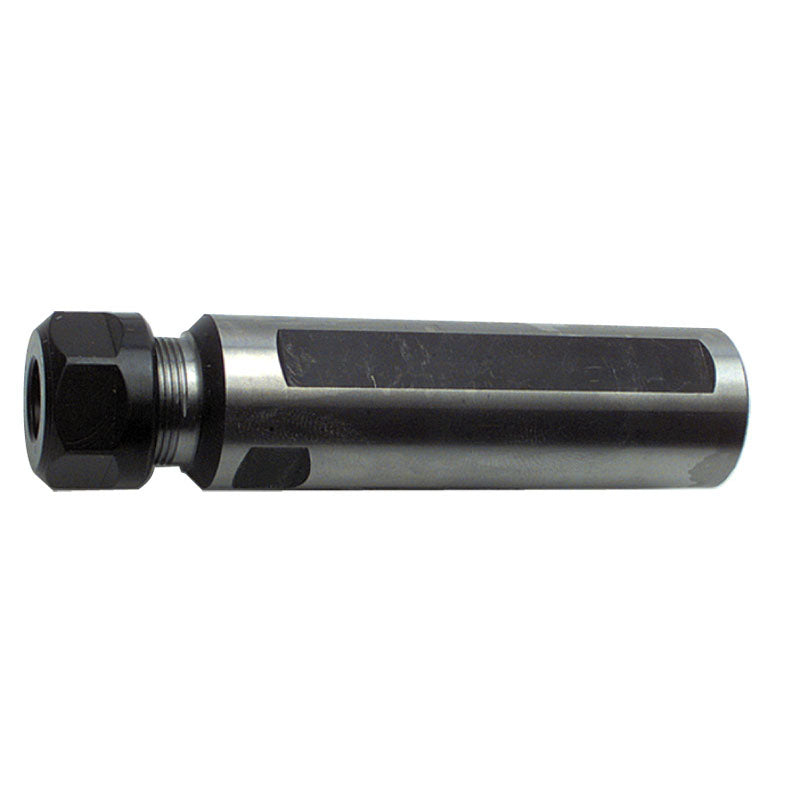

ETM GM70690065 ST5/8X1.250 ER16 MF
SKU: FTS-GM70690065
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 4501923 ST5/8X1.250 ER16 MFFull Description
| Shank Size (SS) | .625 | Style | ER16 |
| Connection Size (CSI) | ER16 | Coolant Supply Property (CSP) | Through Hole |
| Body Diameter (BD) | 0.866" | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022" |
| Protruding Length (LPR) | 1.378" | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.396" |
| Connection Diameter Machine Side (DCONMS) | 5/8" | Measurement Type | Inch |
| Shank Length (LS) | 1-1/4" | Drive Size (DRVS) | 0.669" |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
Family Description
DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes.
